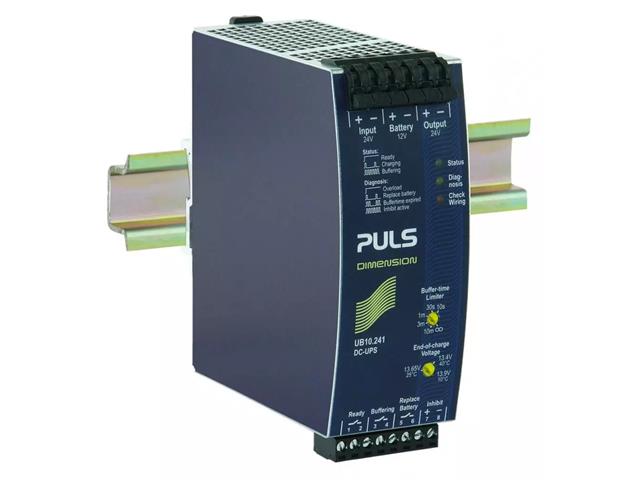

Input data

• DC Input voltage : DC 24V
• Int. current consumption (incl. charging current) : 1.3A

Output data

• Nominal voltage

  • 24Vdc
  • 22.5Vds
• Output current

  • 15A
  • 10A
• Derating : 0.25W/°C for >+60°C

Buffering

• Storage element : External lead acid battery
• Allowed battery sizeV12V, 3.9 to 40Ah VRLA lead acid
• Temperature tracking of the end-of-charge voltage : manual-select

Overview

• Dimensions (WxHxD) : 49mm x 124mm x 117mm
• Weight per unit (excl. packaging) : 530g
• Mounting method : DIN rail
• Operating temp. range : -25°C to 70°C
• Connection method : Spring clamps
• MTBF SN 29500 @ 40°C (h) : 886000h
• DC-OK signal : yes

1. Datasheet - UB10.241
2. User Manual - UB10.241
