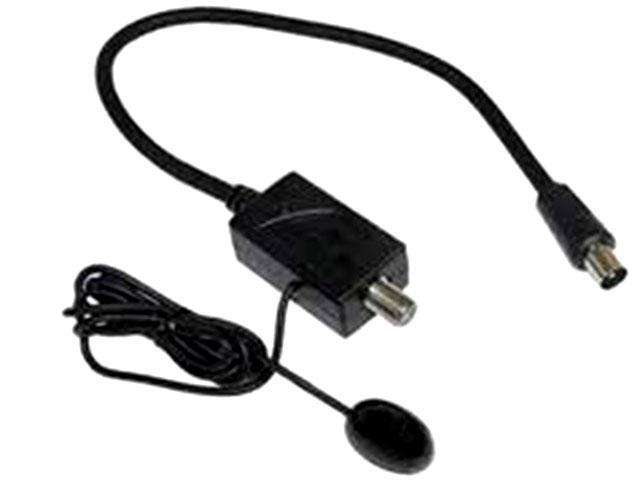

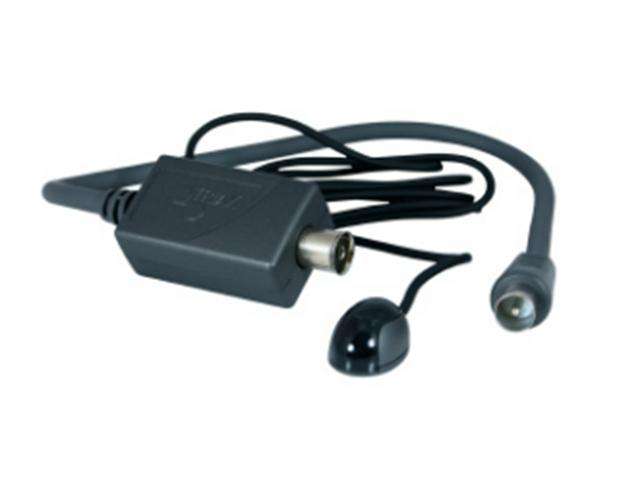

TRIAX TV LINK

9VDC Digital TV Link with 39.7kHz Input Signal Frequency and 7mHz Output Frequency

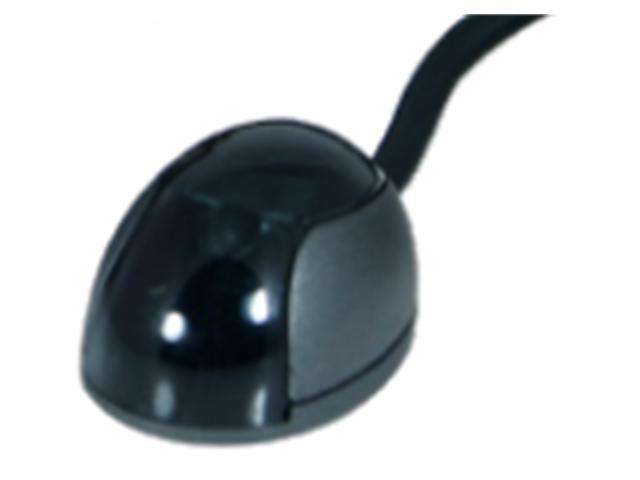

• Triax compact magic eye (as supplied with triax tri link kit)

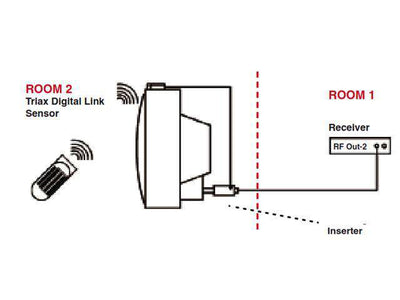

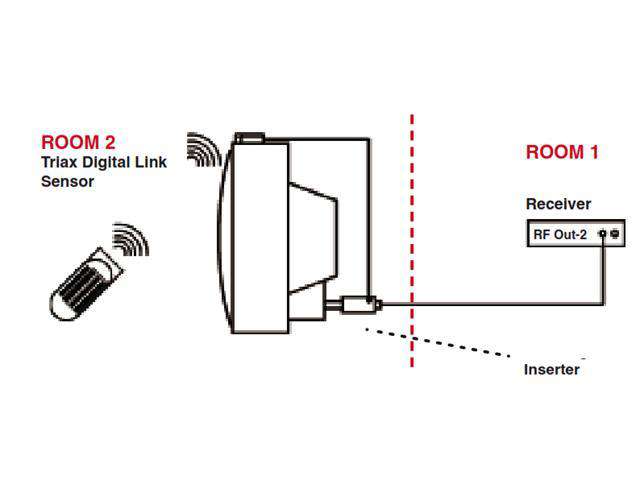

• Allows Control over HDPVR Decoder from Another Location
• Does Rquire Coax Cable from Box to Second Location
• Made by Triax a Well Know Satellite Brand
• Conforms to Xtraveiw Set-Top Box Specification Requirements
• Designed for Use with Plasma/LCD/LED Tv Sets
• Compact design ideal for LCD and plasma TV’s
• Competitive pricing
• Adhesive base for flexible installation
• Easy to install
• Individually bagged

• Input Signal frequency : 37.9 kHz Carrier (Infra Red system)
• Output Signal Frequency : On-Off Keyed 7MHz Carrier
• Line Power Requirement : 9V DC @ 10mA
• Infra Red Sensor Lead : 0.9m
• Output Connector : IEC Male
• Input Connector : IEC Female
• Operating Temperature : 0 to +40°C
• Fly Lead on Output : No

Datasheet Download
