TP-LINK 18 Port Gigabit Easy Smart Switch with 16 Port PoE+ 10/100/1000Mbps, 2×Combo Gigabit SFP Ports, PoE Power Budget:250W, 36Gbps 8K, 100-240VAC, 50/60Hz

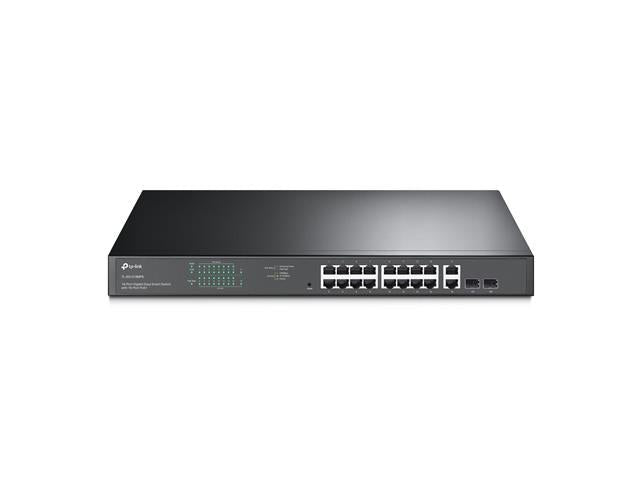

18 Port Gigabit Easy Smart Switch
Feature(s)
- 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
Specifications
General
Interfaces
- 18 10/100/1000Mbps RJ45 Ports
- 2 Gigabit Combo SFP Slots

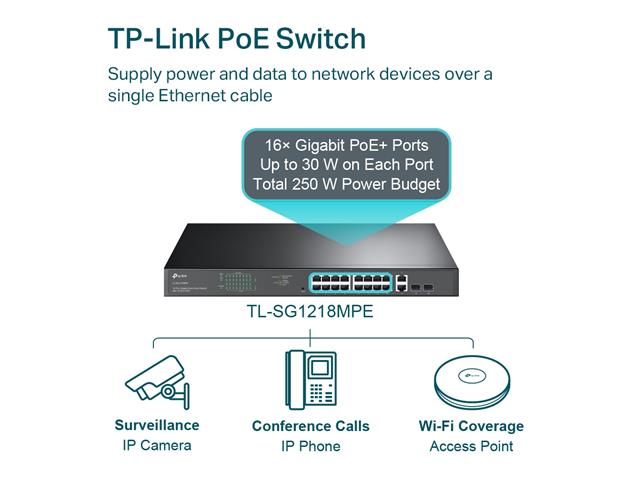

PoE
- PoE Standard : 802.3 af/at
- PoE Ports : 16, up to 30 W Per Port
- PoE Power Budget : 250 W*
Performance
- Switching Capacity : 36 Gbps
- Packet Forwarding Rate : 26.78 Mpps
- Max Address Table : 8 K
- Packet Buffer : 4.1 Mbit
- Jumbo Frame : 10 KB
Physical & Environment
- Power Supply : 100-240V AC, 50/60Hz
- Maximum Power Consumption
- 19.4 W (220V/50Hz. no PD connected)
- 293.3 W (220V/50Hz. with 250W PD connected)
- Maximum Heat Dissipation
- 66.15 BTU/h (no PD connected)
1000.15 BTU/h (with 250 W PD connected)
- Dimensions : (W×D×H) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Noise Max: 47.8 dBA @50cm 25°C
Min: 35.5 dBA @50cm 25°C
- FAN Quantity : 2
- Operating Temperature : 0°C~50°C (32°F~122°F)
- Storage Temperature : -40°C~70°C (-40°F~158°F)
- Operating Humidity : 10%~90%RH, non-condensing
- Storage Humidity : 5%~90%RH, non-condensing
- Certification : CE, FCC
