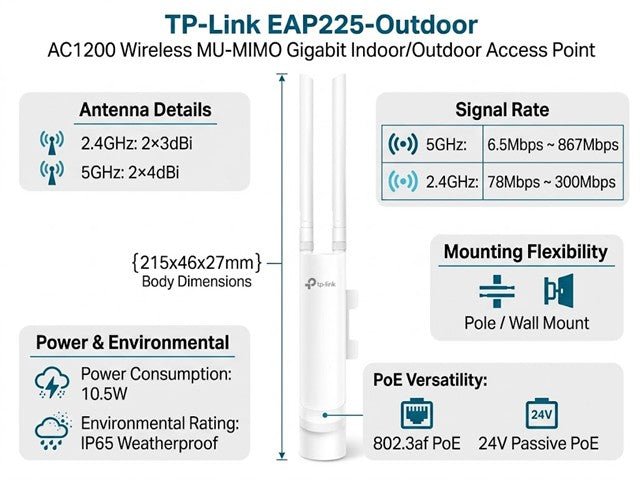

HARDWARE FEATURES

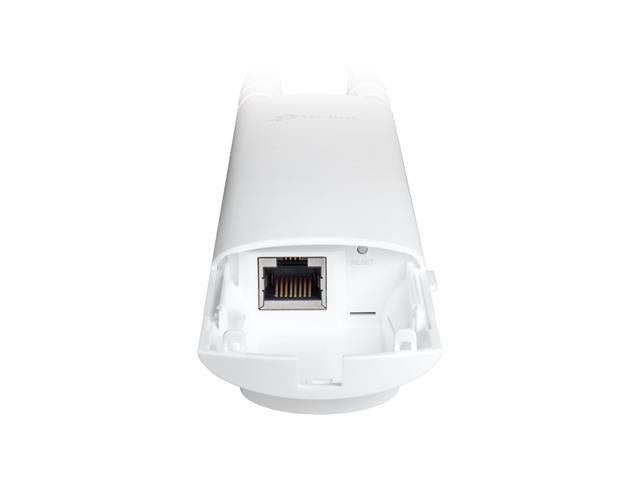

• Interface : 1x Gigabit Ethernet RJ-45 port
• Button : Reset
• Power Supply : 802.3af PoE and 24 Passive PoE(PoE injector included)
• Power Consumption : 10.5W
• Dimensions ( W x D x H ) : 8.5 × 1.8 × 1.1in (215 × 46 × 27 mm)
• Antenna : 2.4GHz: 2 × 3dBi, 5GHz: 2 × 4dBi
• Weatherproof Enclosure : IP65
• Mounting : Pole/Wall mount (mounting kit included)

WIRELESS FEATURES

• Wireless Standards : IEEE 802.11a/b/g/n/ac
• Frequency : 2.4GHz, 5GHz
• Signal Rate:

  • 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to
  • 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 5.5, 11Mbps
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions:

• Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• QoS(WMM)
• MU-MIMO
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security:
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• Transmission Power:
• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT

• Omada App : Yes
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Controller Software : Yes
• Cloud Access : Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email Alerts : Yes
• Management MAC Access Control : Yes
• SNMP : v1, v2c
• System Logging Local/Remote Syslog : Yes
• SSH : Yes
• Web-based Management : Yes
• L3 Management : Yes
• Multi-site Management : Yes
• Management VLAN : Yes

OTHERS

• Certification
• FCC
• RoHS

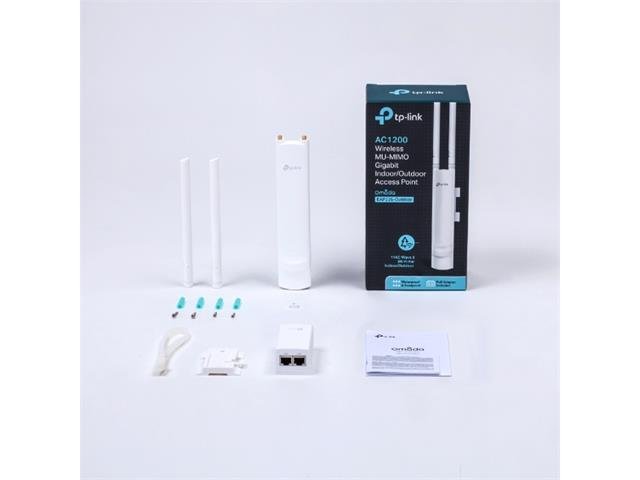

• Package Contents:

  • AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
  • Passive PoE Injector
  • Power Cord
  • Mounting Kits
  • Installation Guide
  • Waterproof Rubber Insert
  • Waterproof Antenna
• Environment:

  • Operating Temperature: -30℃~70℃ (-22℉~158℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
