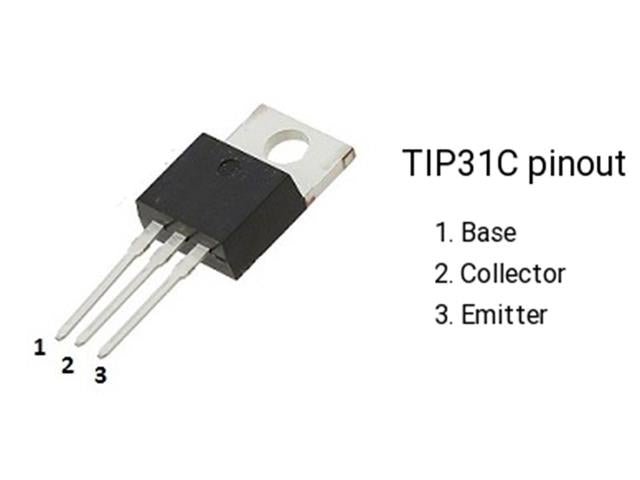

TIP31C
N 100V 100V 3A 20/100 TOP66

SKU: TIP31C

BRAND: ST

In Stock
R 9.78_{(inc VAT)}
R 8.50_{(ex VAT)}

Or split into 4x interest-free
payments of 25% on orders over
R10 Learn more

Collections: Semiconductors

Type: Transistors

Category: Power Transistor

N 100V 100V 3A 20/100 TOP66

Specifications

Mounting Style : Through Hole
Package/Case : TO-220-3
Transistor Polarity : NPN
Configuration : Single
Collector- Emitter Voltage VCEO Max : 100 V
Collector- Base Voltage VCBO : 100 V
Emitter- Base Voltage VEBO : 5 V
Collector-Emitter Saturation Voltage : 1.2 V
Maximum DC Collector Current : 3 A
Pd - Power Dissipation : 40 W
Gain Bandwidth Product fT : 3 MHz
Minimum Operating Temperature : - 65 C
Maximum Operating Temperature : + 150 C
Series : TIP31C
Height : 9.4 mm
Length : 10.67 mm
Technology : Si
Width : 4.83 mm
Continuous Collector Current : 3 A
Unit Weight : 1.200 g

Downloads

Datasheet - TIP31C
