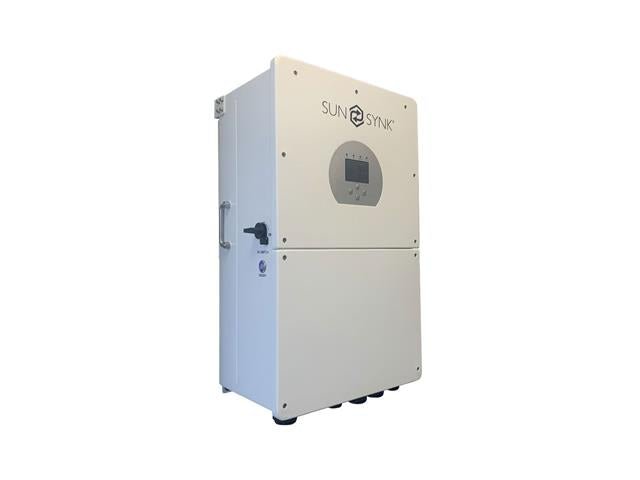

SUN-16K-SG01LP1 - Power Inverters -

SUN-16K-SG01LP1
Sunsynk Hybrid Inverter 16KW 48V Single Phase, Max Charge Current:275A, Max Discharge Current:300A, MAX DC I/P PWR:18000W, MAX PV I/P Voltage:450V, MPPT Range:250-450V, MAX AC Current:70A,422W×702H×281D mm,IP65, RS485; CAN, C/W WiFi Dongle,34.5kg

SKU: SUN-16K-SG01LP1

BRAND: Sunsynk


In Stock
R 79,752.50 (inc VAT)
R 69,350.00 (ex VAT)

Or split into 4x interest-free
payments Learn more

Collections: Loadshedding, Power

Type: Power Inverters

Category: Hybrid Inverter, Loadshedding

16KW 48V Single Phase Hybrid Inverter

  • Supporting Wi-Fi or GSM monitoring
  • Visual power flow screen
  • Parallel/Multi invert function grid-tied and off-grid
  • Compatible with main electrical grid voltages or power generators
  • Self-consumption and feed-in to the grid
  • Auto restart while AC is recovering
  • Auto earth bond feature (Via a relay)
  • Fully programmable controller
  • Programmable supply priority for battery or grid
  • Programmable multiple operation modes: on-grid/off-grid & UPS
  • Configurable battery charging - current/voltage based on the application
  • Configurable AC / solar / generator charger priority by LCD setting
  • Overload/over-temperature/short-circuit protection
  • Smart battery charger design for optimized battery protection
  • Limiting function installed to prevent excess power overflow to grid
  • Colourful touch LCD, IP65 protection degree
  • DC couple and AC couple to retrofit existing solar system
  • Max. 16 inverters in parallel; Support multiple batteries parallel
  • Max. charging/discharging current of 190A
  • 16kW super hybrid inverter
  • Support storing energy from diesel generator

Battery Input Data:

  • Battery type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 43~60V
  • Max. Charging Current: 275A
  • Max. Discharging Current: 300A
  • Charging Curve: 3 Stages / Equalisation
  • External Temperature Sensor: Yes
  • Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS

PV String Input Data:

  • Max. DC Input Power: 18000W
  • Max PV Input Voltage: 450V
  • MPPT Range: 250V~450V
  • Start-up Voltage: 150V
  • PV Input Current: 22A + 22A
  • Max. PV Isc: 26A + 26A
  • No. of MPPT / Strings Per MPPT: 3/2

AC Output Data:

  • Max. On-Grid AC Power: 16000W
  • Max. Off-Grid AC Power: 13000W
  • Peak Power (off-grid): 2 times of rated power, 10 S
  • AC Output Rated Current: 65A
  • Max AC Current: 70A
  • Max Continuous AC Passthrough: 200A
  • Frequency Range: 45Hz ~55Hz
  • Voltage Range: 211V ~ 264V
  • Grid Type: Single-Phase
  • Current Harmonic Distortion: THD<3%(Linear load<1.5%)

Efficiency:

  • Max. Efficiency: 97.6%
  • Euro Efficiency: 97%
  • MPPT Efficiency: 99.9%

Protection:

  • Integrated: PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection

 Certifications and Standards:

  • Grid Regulation: VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05
  • Safety EMC / Standard: IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3

  General Data:

  • Operating Temperature Range: -25~55°C
  • Cooling: Fan
  • Noise: <30dB
  • Communication with BMS: RS485; CAN
  • Weight: 34.5Kg
  • Size (mm): 422W x 702H x 281D
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 5 Years
Device Inverter
Type 16KW | 48V | Single Phase | Hybrid
