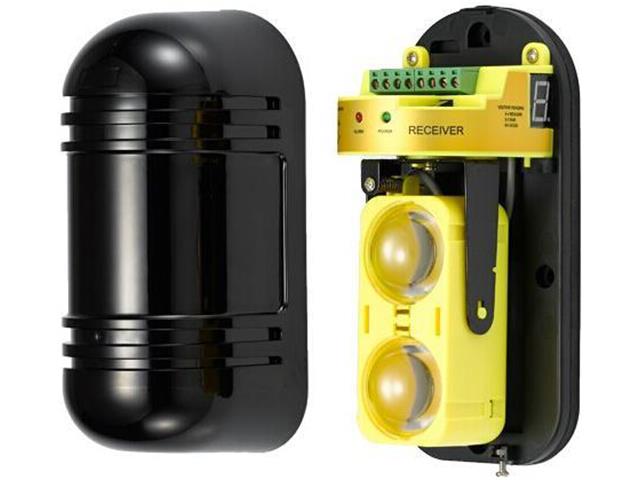

STB-40F
Dual IR Beam 40 Meters 4CH Frequency 12V/24VDC 90mA Max. NO & NC {171x82x80mm}

SKU: STB-40F

BRAND: GSS


Or split into 4x interest-free
payments of R148.75 Learn more

4CH Dual IR Beam

  • 4 channel of frequency adjustment active infrared double beam.
  • Selectable beam frequency,suitable for long distance and stack use,strong anti-interference ability.
  • LED digital tube display received signal strength,easy to debug.
  • Fully sealed design,rain-proof(fog),dust-proof(worm).
  • High levels of anti-RFI/EMI capability.
  • Professional anti-jamming optical housing.
  • Working voltage : DC12-24V
  • Working current : 90mA max
  • Detecting distance : 40m
  • Frequencies : 4 channel
  • Alarm Output NO & NC
  • Beam adjustment Horizontal:180°(±90°)
  • Vertical:90°(±10°)
  • Installation place Outdoor/indoor
  • Working temperature -25°C~+55°C
  • Dimension 171*82*80mm
Device Beam
Type 4CH | Dual IR
