SS5GP111 - Switches -

SS5GP111 - Switches -

SS5GP111

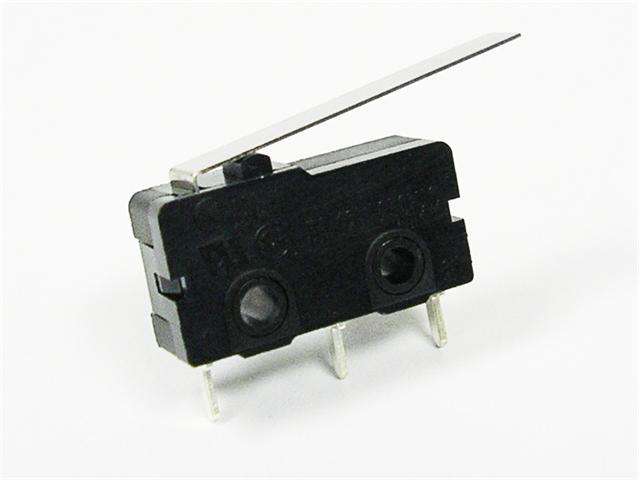

Sub-Miniature Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • PCB-Terminal • Long-Lever Actuator

SKU: SS5GP111

BRAND: Communica

In Stock
R 79.93_{(inc VAT)}
R 69.50_{(ex VAT)}

Or split into 4x interest-free
payments of R17.37 Learn more

Collections: Electromechanical

Category: Micro Switches

Features

Contact Resistance (initial) : Max. 300mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : 0.1A - Min.1,000,000 operations
Other ratings - Min 6,000 operations
Electrical Operating Frequency : 0.1A - 120 operations per minute
Other ratings - 10~30 operations per minute
Mechanical Service Life : Min 10,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Long-Lever
Termination	PCB-Terminal
Switch Circuit	1C-SPDT(CO)
Electrical Rating	5A-250VAC
No.of Poles/Pins	3Pin
