SS5GL222

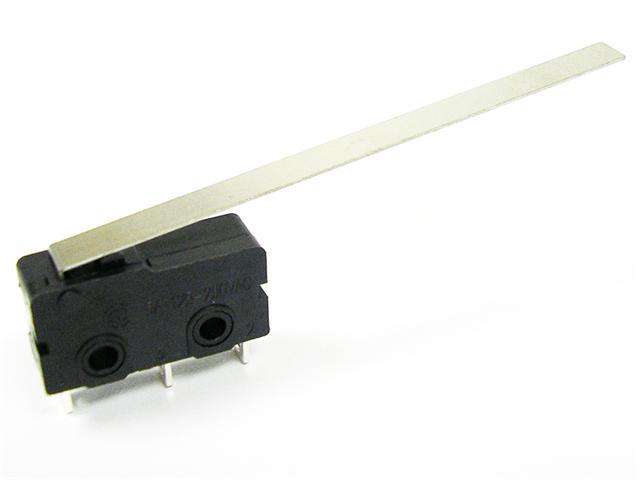

Sub-Miniature Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • Solder-Lug • Extra-Long-Lever Actuator

SKU: SS5GL222

BRAND: Communica

In Stock
R 25.30_{(inc VAT)}
R 22.00_{(ex VAT)}

Or split into 4x interest-free
payments of R5.50 Learn more

Collections: Electromechanical

Category: Micro Switches

Features

Contact Resistance (initial) : Max. 300mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : 0.1A - Min.1,000,000 operations
Other ratings - Min 6,000 operations
Electrical Operating Frequency : 0.1A - 120 operations per minute
Other ratings - 10~30 operations per minute
Mechanical Service Life : Min 10,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Extra-Long-Lever
Termination	Solder-Lug
Switch Circuit	1C-SPDT(CO)
Electrical Rating	5A-250VAC
No.of Poles/Pins	3Pin
