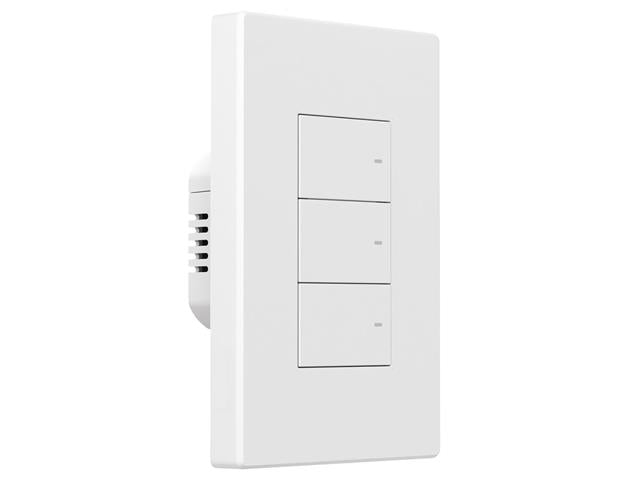

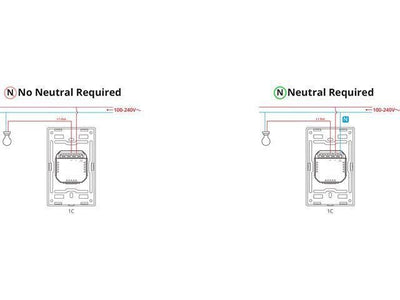

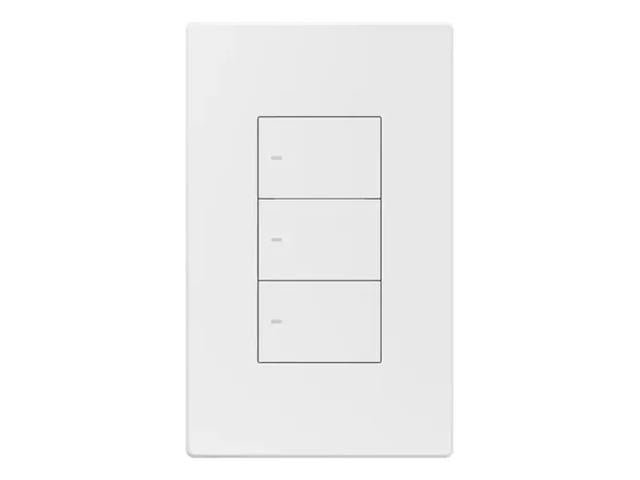

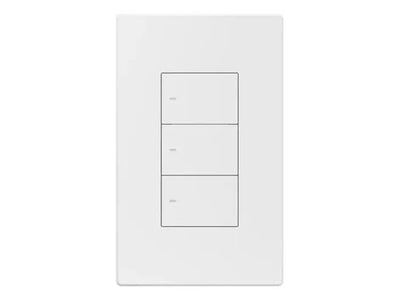

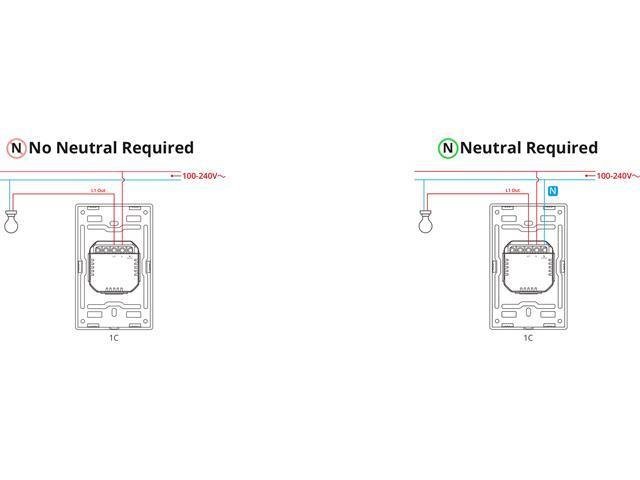

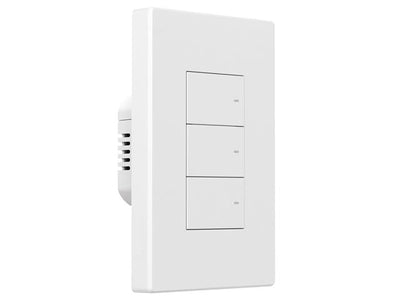

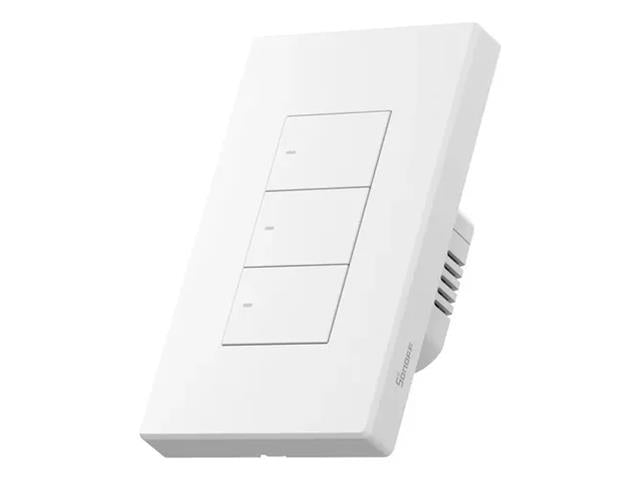

This device is a Zigbee-based smart wall switch, which allows for either neutral required mode or no neutral required mode wiring, depending on your home’s circuit setup. Used with a SONOFF Zigbee gateway, you can achieve remote control of device opening/closing, setting schedule/timer, creating smart scenes, and other smart control methods.
- Model : ZBM5-2C-120W
- MCU : EFR32MG22
- Rating : 3C: 100-240V~ 50/60Hz 10A/gang, Total 10A Max Resistive load μ
- LED load : 2C: 400W@240V/gang, 200W@100V/gang, Total 400W@240V, 200W@100V
- Min. load : 3W (No neutral required input mode)
- Wireless connectivity : Zigbee 3.0
- Net Weight : 3C:193g

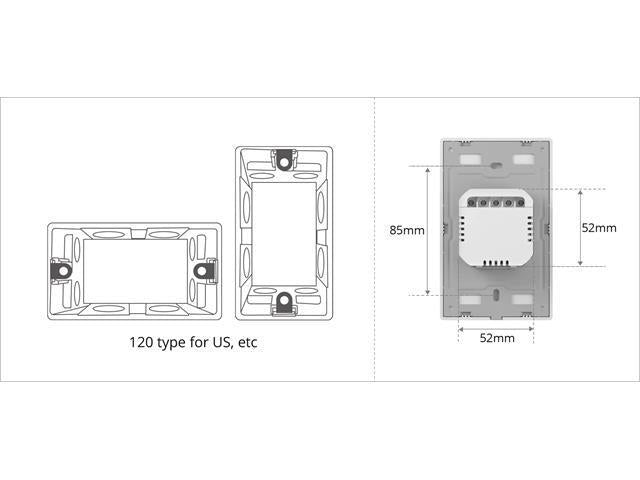

- Dimension : 120x74x39.4mm
- Color : White
- Casing Material : PC+CRS
- Applicable Place : Indoor
- Working Temperature : -10℃~40℃
- Working Humidity : 5%~95% RH, non-condensing
- Certification : Certification CE/FCC/RoHS
- Rated impulse voltage : 4KV
- Automatic action : 20000 Cycles
- Control type : 1.B
- Operating altitude : Operating altitude 2000m
- Executive standard : EN IEC 60669-2-1
| Device |
Switch |
| Type |
3 Gang | Smart | Wall |
