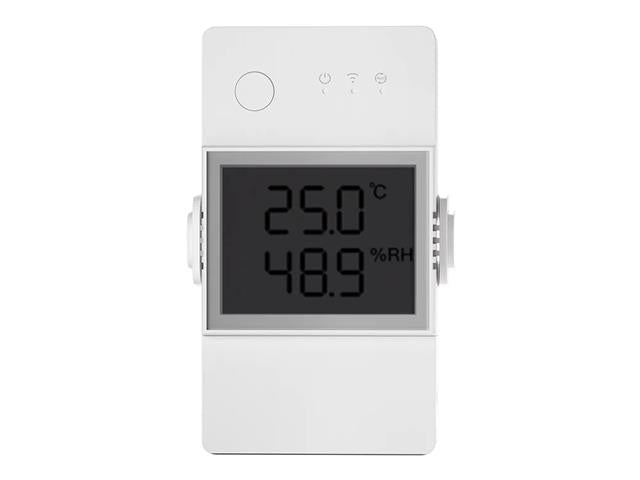

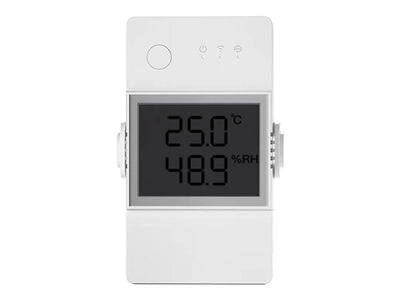

SONOFF THR320D TEMP AND HUMIDITY
THR320-Temperature and Humidity Monitoring WiFi Smart Switch with LCD Display (100 – 240V 50/60HZ, 20A MAX). Has an RJ9 Jack for Sensor Input. Can Be Mounted on a DIN Rail. Temp and Humidity Sensors not Included

Name: SONOFF THR320D TEMP AND HUMIDITY - Communica [Part No: SONOFF THR320D TEMP AND HUMIDITY]
Brand: Sonoff
SKU: SONOFF THR320D TEMP AND HUMIDITY
Price: 321.74 ZAR
Availability: InStock
Rating: 3.00 (1 reviews)

SKU: SONOFF THR320D TEMP AND HUMIDITY

BRAND: Sonoff

In Stock
R 370.00_{(inc VAT)}
R 321.74_{(ex VAT)}

Or split into 4x interest-free
payments of R80.43 Learn more

Collections: Home Automation, Sonoff

Type: Home Automation

Category: Wifi Smart Switch

Monitoring WiFi Smart Switch

Overview

Not recommended to be used directly on Geysers, as device current is too low. Can be used with a suitable external contactor.

Features

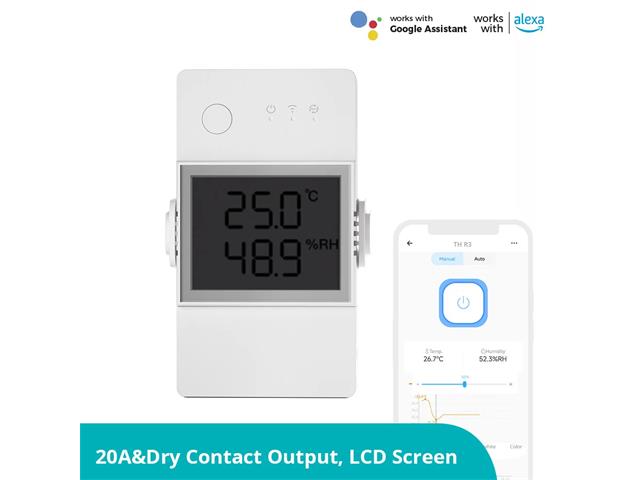

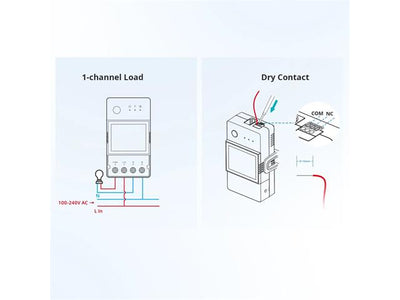

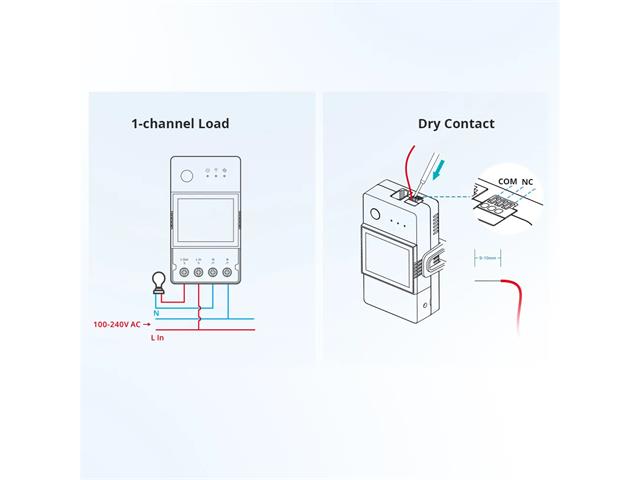

20A Max & Dry Contact Output - Support to connect 20A Max high load, dry contact output.
LCD Screen - Real-time monitoring of temperature and humidity data, the screen refreshed every 5S.
6-Month Temp & Humi Historical Data by Hours - Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
Local Automatic Control - Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
Voice Control and Query - Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice.

Specifications

TH Elite	16A
Model	THR320D
THR320D Input/Output	100-240V~50/60Hz 20A Max
MCU	ESP32
Wi-Fi	IEEE 802.11 b/g/n 2.4GHz
Dry contact	5-30V, 1A Max
TH Elite Working Humidity	5%-95%RH,non-condensing
TH Elite Working Temperature	-10°C~40°C (14℉~104℉)
THS01 Working Temp	–40℃~+85°C(-40℉~185℉)
THS01 Humi Measuring Range	0~100%RH
DS18B20 WorkigTemp	-55℃~+125℃(-67℉~257℉)
MS01 Humi Measuring Range	0~100%RH
MS01 Operating Temp Range	0℃~60°C(32℉~140℉)
RL560 Conductor Resistance	Max.10Ω
RL560 Insulation Resistance	Min.5MΩ
Certification	TUV/CE/UKCA/WWA/FCC/RoHS/SRRC
Security Mode	WPA/WPA2
Works with	Amazon Alexa, Google Assistant
Casing material	PC V0
Product Size	98x54x31mm
Color	White

Downloads

Additional Information

Device	Switch
Type	Monitoring \| WiFi \| Smart
