SOLDER BUTT CONNECTOR 1.5-2.5MM
Solder Butt Connector Blue 1.5-2.5mm Pack of 5

Name: SOLDER BUTT CONNECTOR 1.5-2.5MM - Communica [Part No: SOLDER BUTT CONNECTOR 1.5-2.5MM]
Brand: Communica
SKU: SOLDER BUTT CONNECTOR 1.5-2.5MM
Price: 17.20 ZAR
Availability: InStock

SKU: SOLDER BUTT CONNECTOR 1.5-2.5MM

BRAND: Communica

In Stock
R 19.78_{(inc VAT)}
R 17.20_{(ex VAT)}

Collections: Wire & Cable

Type: Cable Lugs, Terminals & Splices

Category: Splice Connectors

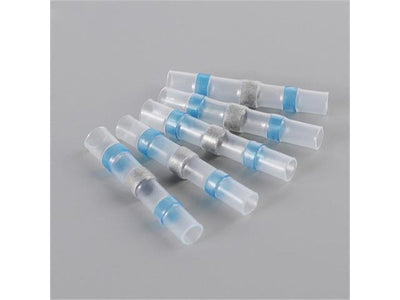

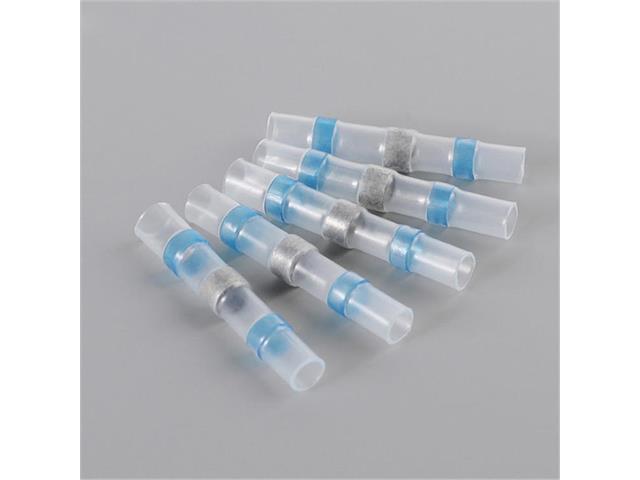

Blue Solder Butt Connector

Features

Waterproof and heat shrinkable, easy to operate, fast dissolving at low temperature, strong conductivity
Both ends of the outer tube contain colored hot melt adhesive, waterproof, no leakage, safe to use
100% new high quality.
Shape and color: same as the picture
Shrinkage Ratio 2:1
An easy One-Step Wire Connections.
Easy Identification: Color coded connector tubing.
Polyolefin heat shrink butt connectors improve Pullout Strength.
High-quality wire connectors in Seal, Strain Relief, Cable Check and Insulation.
Melted Solder ensures wires Strongly Connected and avoids wires slipping out from the terminal.

Specifications

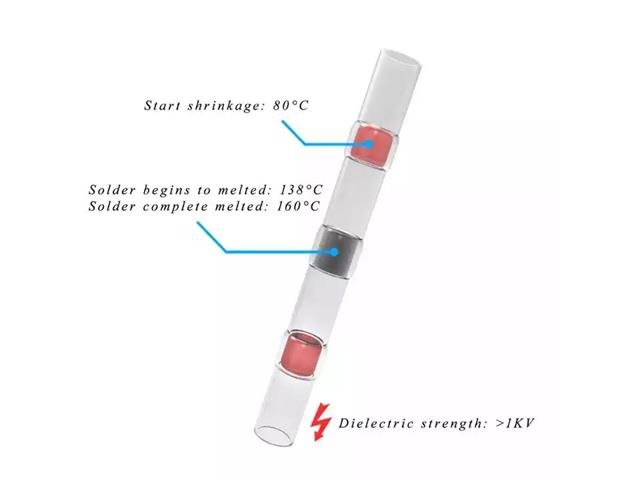

Operating Temp：-55℃-125℃
Start Shrinking Temp:80℃
Solder Start Melting Temp：138℃
Solder Complete Dissolution Temp：160℃
Shrink Temp >160℃
Dielectric Strength：1KV
Protection class： IP67

Downloads

Datasheet - SOLDER BUTT CONNECTOR 1.5-2.5MM

Additional Information

Device	Connector
Type	Blue \| Solder \| Butt
