SOLAR REG 12-24-48V 35A VTN MPPT - Solar -

SOLAR REG 12-24-48V 35A VTN MPPT

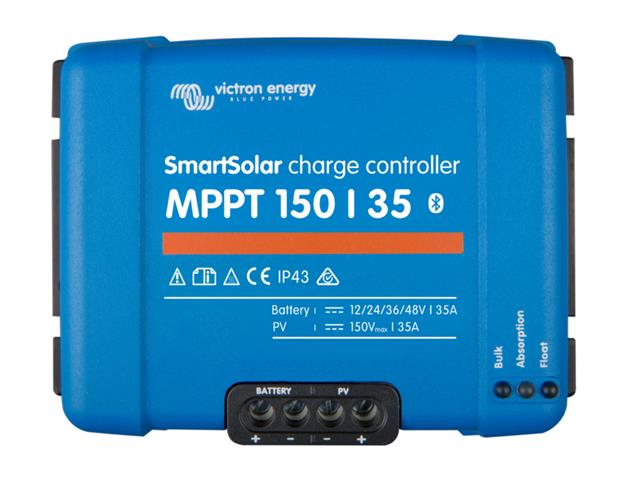

Solar Regulator 12-24-48V 35A Victron MPPT Smart Solar Charge Controller {MPPT150/35}

SKU: SOLAR REG 12-24-48V 35A VTN MPPT

BRAND: Victron


In Stock
R 2,915.25 (inc VAT)
R 2,535.00 (ex VAT)

Or split into 4x interest-free
payments of R633.75 Learn more

Collections: Loadshedding, Power

Type: Solar

Category: Loadshedding, Solar Regulator

MPPT Smart Solar Charge Controller

  • SmartSolar Charge Controller : MPPT 150/35
  • Battery voltage : 12 / 24 / 48V Auto Select (software tool needed to select 36V)
  • Rated charge current : 35A
  • Nominal PV power 1a, b) : 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W
  • Max. PV short circuit current 2) : 40A
  • Maximum PV open circuit voltage : 150V absolute maximum coldest conditions 145V start-up and operating maximum
  • Maximum efficiency : 98%
  • Self-consumption : 12V: 20mA 24V: 15mA 48V: 10mA
  • Charge voltage 'absorption' : Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable)
  • Charge voltage 'float' : Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable)
  • Charge algorithm : multi-stage adaptive (eight pre-programmed algorithms)
  • Temperature compensation : -16 mV / -32 mV / -64 mV / °C
  • Protection
    • Battery reverse polarity (fuse, not user accessible)
    • PV reverse polarity
    • Output short circuit
    • Over-temperature
  • Operating temperature : -30 to +60°C (full rated output up to 40°C)
  • Humidity : 95%, non-condensing
  • Data communication port : VE.Direct
  • ENCLOSURE
  • Colour : Blue (RAL 5012)
  • Power terminals : 13 mm2 / AWG6
  • Protection category : IP43 (electronic components), IP22 (connection area)
  • Weight : 1,25 kg
  • Dimensions (h x w x d) : 130 x 186 x 70 mm
Device Solar Regulator
Type MPPT | Smart Solar
