SMART KIT 1052
3-Input Mono-Mixer Kit • Function Group : Sound Kits & Effects

Name: SMART KIT 1052 - Communica [Part No: SMART KIT 1052]
Brand: Smart Kits
SKU: SMART KIT 1052
Price: 239.03 ZAR
Availability: OutOfStock
Rating: 1.00 (1 reviews)

SKU: SMART KIT 1052

BRAND: Smart Kits

Sold Out
R 274.88_{(inc VAT)}
R 239.03_{(ex VAT)}

Or split into 4x interest-free
payments of R59.75 Learn more

Collections: Clearance Sale, DIY Kits

Type: Sound Kits & Effects

Category: Clearance Sale, Discontinued Item, Sound Kits & Effects

Overview

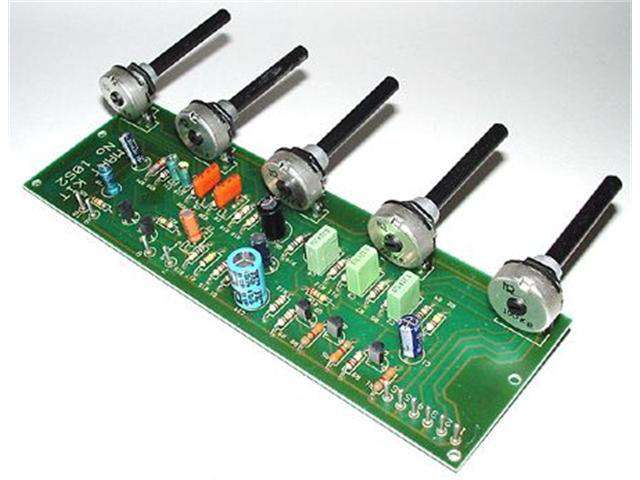

This circuit is a 3-input MONO mixer with independent level control for every input. It also incorporates separate BASS and TREBLE controls. It can be used with SMART KITs 1023 and 1024 to make its inputs sensitive enough for MICROPHONE and P.U. Suitable power supply is the SMART KIT 1068. Operating voltage: 18VDC. Input sensitivity: 150mV. Max. current: 100mA.

Specification

Brand: Smart Kit
Group: Sound Effects
Device: Kit
Model: 1052

Disappointing. Poor design. The pots are set back so far that they cannot be mounted in a panel without removing them and running wires to them. Could have easily been avoided by placing the pots on the board edge! Component identification poor for newbies. The pots are not marked whether they are log or linear. The transistors are different to those in the parts list although looking them up in a spec sheet finds them compatible. Very confusing for a newbie which fortunately I am nor!
