SHR 1,6 BLK
1.6-0.8mm Heat Shrink Sleeving with Excellent Flame Retardance in Black Colour - Price per Meter

Name: SHR 1,6 BLK - Communica [Part No: SHR 1,6 BLK]
Brand: AirShrink
SKU: SHR 1,6 BLK
Price: 8.25 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SHR 1,6 BLK

BRAND: AirShrink

In Stock
R 9.49_{(inc VAT)}
R 8.25_{(ex VAT)}

Or split into 4x interest-free
payments of 25% on orders over
R10 Learn more

Collections: Wire & Cable

Type: Cable Accessories

Category: Heat Shrink Sleeves

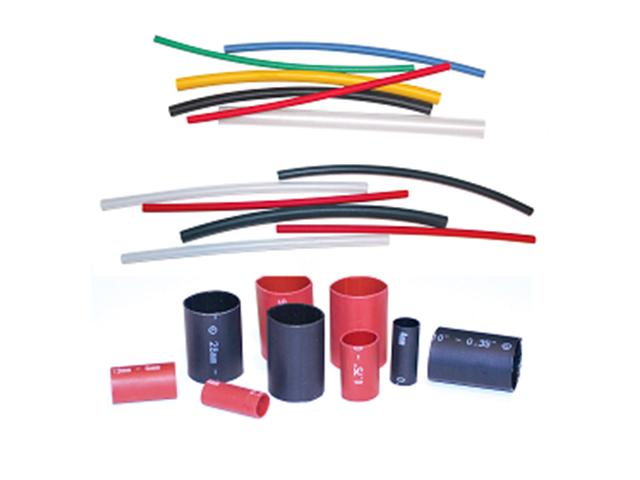

1.6mm Black Heat Shrink Sleeve

Overview

ATW is a halogen free, RoHS, flame retardant tubing designed in closed and sensitive environments such as trains, ships and in underground mining where the of acid gas after fire must be minimised avoid consequential damage to computers, plc's and electronic control equipment. Being RoHS compliant means the product does not contain restricted substances such as Cadmium (Cd), Lead(Pb), Hexavalent Chrome (Cr6) and Mercury (Hg) RoHS is now a requirement in the automotive industry.

Feature(s)

Cross-linked polyolefin
Shrink Ratio 2 : 1
Operating temperature : -55 to 125°C
Excellent flame retardance VW-1
Minimum shrink temperature : 70°C 600V
UV Stable

Specifications

Tensile (MPa) : > 10.4
Elongation (%) : > 200
Heat Ageing

Tensile (MPa) (158°C x 168 hrs) : > 7.3
Elongation (%) : > 100

Heat Shock (250°C x 4hrs) : No Cracks/Dripping
Low temperature Flexibility (4 hrs @ -35°C) : No Cracking
Copper Stability (158°C x 168 hrs) : Pass
RoHS (ppm) : <200
Flammability VW-1 : Pass
Dielectric Strength (kV/mm) : > 15
Volume Resistivity ASTM D 257
Halogen Test (ppm) : <800

Downloads

Datasheet - Thin Wall Heatshrink

Additional Information

Device	Heat Shrink Sleeve
Color	Black
Dielectric	>15KV/mm
Shrink Ratio	2 : 1
Sleeve Diameter	1.6mm
Shrunk Diameter	0.8mm
Flame Retardant	Yes
Min Shrink Temp	70°C
