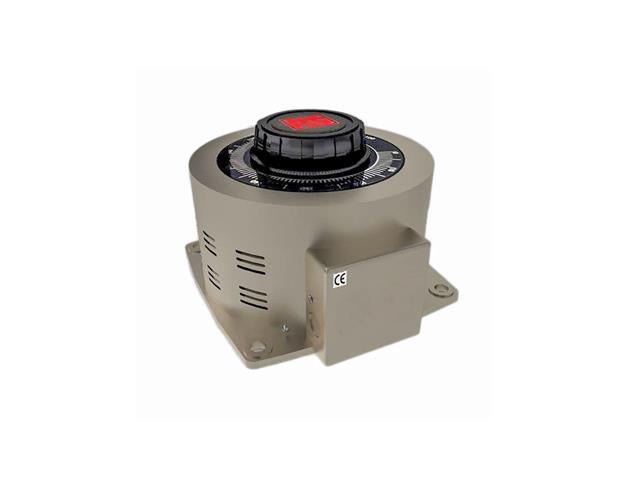

1-phase 6.72 kVA variac is a professional range of open style variable transformer available in either single or three phase. This transformer is not designed to provide mains isolation but does not operate at mains voltage. It has a primary voltage of 240 V and a single output. The transformers need to be fitted within an enclosure or a protected environment. This variac meets RoHS compliant.
- Single or three phase versions available in a range of current ratings
- Heavy duty construction
- High efficiency & excellent regulation
- No waveform distortion
- Silver plated commutator
- Overload capacity
- Negligible maintenance
- Trouble free long life
- Primary Voltage Rating : 240V
- Secondary Voltage Rating : 0 → 240 V, 0 → 270 V
- Power Rating : 6.72kVA
- Type : Surface Mount
- Knob Rotation : Clockwise
- Number of Phases : 1
- Number of Outputs : 1
- Termination Type : Wire Termination
- Weight : 25kg
- Dimensions : 300 x 300 x 225mm
- Primary Current Rating : 28A
- Depth : 225mm
- Length : 300mm
- Maximum Operating Frequency : 60Hz
- Construction : Enclosed
- Minimum Operating Frequency : 50Hz
- Width : 300mm
