PSU SWM 12V 1A SMF
Regulated AC Adapter. InpuT 100 – 240VAC (2 Pin EU Plug). Output 12VDC, 1 A (5.5x2.1mm Centre-Positive Barrel Jack). Cord Length 1.2m

Name: PSU SWM 12V 1A SMF - Communica [Part No: PSU SWM 12V 1A SMF]
Brand: Communica
SKU: PSU SWM 12V 1A SMF
Price: 80 ZAR
Availability: InStock

SKU: PSU SWM 12V 1A SMF

BRAND: Communica

In Stock
R 92.00_{(inc VAT)}
R 80.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Plug-in Type Power Supply

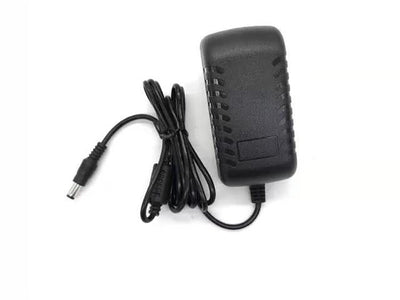

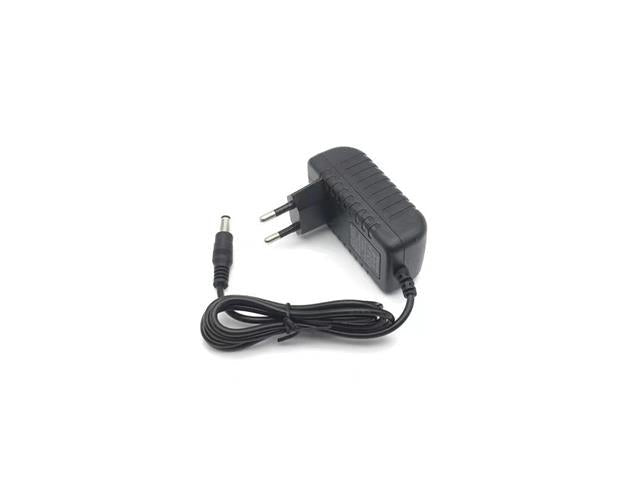

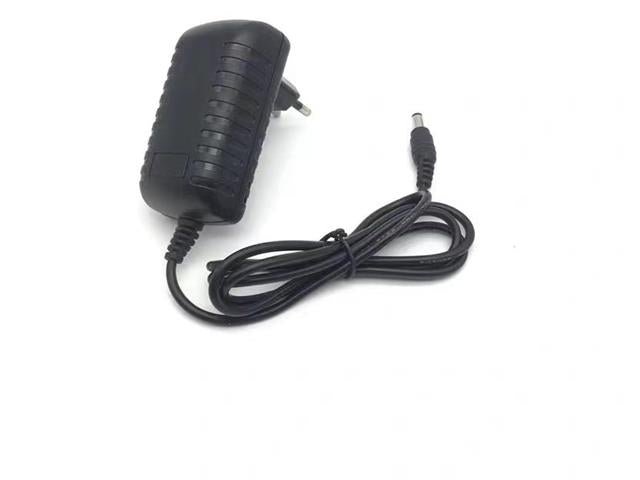

Regulated AC Adapter

Feature

This is a 12V 1A power adapter with an ac input & dc output.
Input: 100 to 240Vac (2 pin EU plug)
Output: 12Vdc, 1A (5.5x2.1mm centre-positive barrel jack)

Specifications

INPUT

Plug type : Two pin EU plug
Input voltage rating : 100Vac to 240Vac
Input voltage range : 90Vac to 270Vac
Input frequency range : 47Hz to 63Hz
Maximum inrush current
- 30A for 100Vac @ full load
- 75A for 240Vac @ full load
Input current : 0.3A max @ 90V/60Hz full load
Standby power load : 0.1W max @ 254V/50Hz no load

OUTPUT

Plug type : 5.5x2.1mm centre-positive barrel jack
Cord length : 1.2m
Output voltage : +12V
Output voltage tolerance : +/- 0.6V
Min load current : 0mA
Max load current : 1A
Line regulation +/- 1%
Load regulation +/- 5%
Ripple and noise : 150mV p-p

Downloads

Datasheet - PSU SWM 12V 1A SMF

Additional Information

Device	Adapter
Type	Regulated \| AC
