PRV ABT-40
Paravision Infrared Perimeter 2 Beam - 40m (PA2800)

SKU: PRV ABT-40

BRAND: Paravision

Sold Out
R 833.75_{(inc VAT)}
R 725.00_{(ex VAT)}

Or split into 4x interest-free
payments of R181.25 Learn more

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: IR Beams

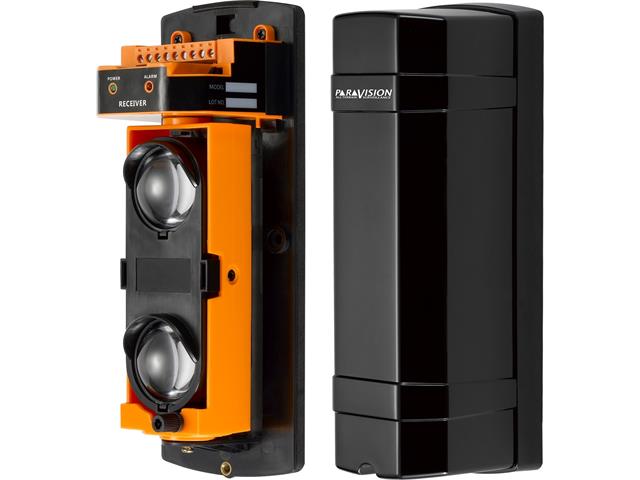

Paravision Infrared Perimeter 2 Beam

Features

NC/NO relay outputs and tamper function, compatible with all alarm systems.
4-channel frequencies, avoiding cross-interference.
IP65 weather protection
2-bit digital display, showing the signal strength
Intelligently heating in cold condition

Specifications

Detection Range Outdoor : 40m
Detection Range Indoor : 120m
Detection method : Simultaneous interruption of 2 infrared beams
Frequencies : 4 different channels selectable
Interruption Time : 50ms, 100ms, 300ms, 700ms(selectable)
Power Supply : DC/AC 12-24V
Current Consuption : 70mA max
Alarm Period : ≥1.5sec
Alarm Output : 1C, relay output (AC/DC30V, 1.0A max
Tamper Switch : NC, opens when cover removed
Operating Temperature : -25°C to 55°C
Environment Humidity : 95% max
Alignment Angle : Horizontal 180°(plusmn90°), Vertical 20°(plusmn10°)
Mounting : Outdoor or indoor, Wall or Pole

Downloads

Datasheet - PRV ABT-40

Additional Information

Device	Beam
Type	Paravision \| Infrared \| Perimeter 2
