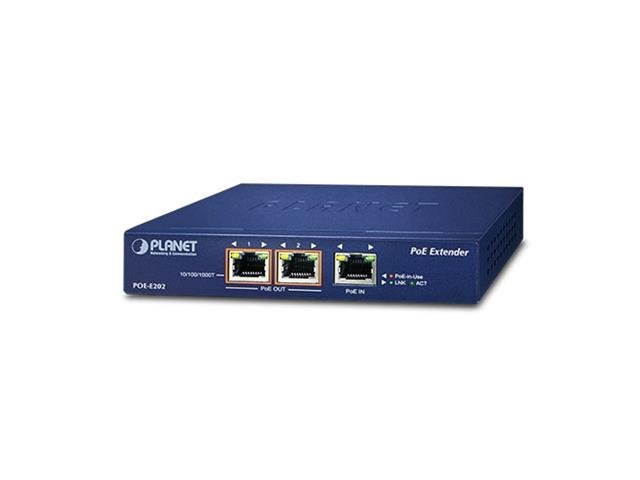

POE-E202
Planet Power Over Gigabit Ethernet Extender 10/100/1000Base-T, PoE PWR O/P:44-55VDC 25Watts, 1 PORT 802.3at POE+ 2-PORT 802.3af/at, (140X77X28mm) 258g

SKU: POE-E202

BRAND: Planet


In Stock
R 1,604.25 (inc VAT)
R 1,395.00 (ex VAT)

Collections: Computing & Peripherals

Type: Power over Ethernet - PoE

Category: POE Switch

Power Over Gigabit Ethernet Extender

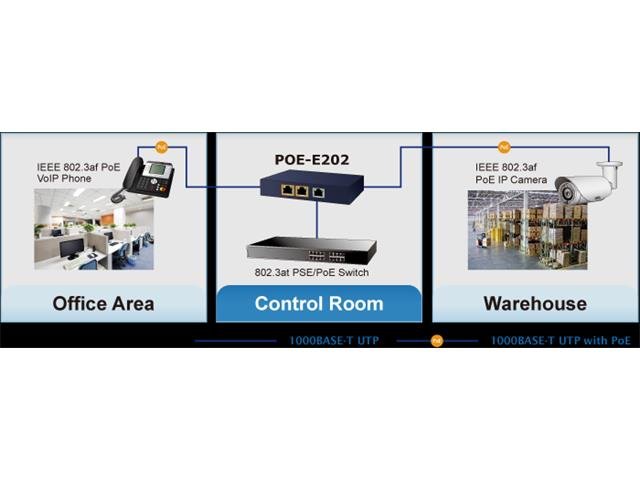

PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Physical Port

  • 3-port 10/100/1000BASE-T Gigabit RJ45
  • 1-port data + power input
  • 2-port data + power output

Power over Ethernet

  • 1-port data + power input
    • Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
    • Supports PoE input power up to 30.8 watts
  • 2-port data + power output
    • Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE
    • Up to 2 IEEE 802.3af/802.3at devices powered
    • Supports PoE power up to 25 watts for each PoE port
    • Auto detects powered device (PD)
  • Extends the range of PoE to an additional 100 meters (328ft.)
  • Forwards both Ethernet data and PoE power to remote device

Layer 2 Features

  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • 10K iumbo packet support
  • IEEE 802.1Q VLAN transparency
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Case and Installation

  • No external power cable installation required
  • Made of metal, desktop size design
  • Wall-mountable, Plug-and-Play installation
  • 0 ~ 50 degrees C operating temperature
Device Ethernet Extender
Type Power Over Gigabit
