PHOENIX 2967060

SKU: PHOENIX 2967060

BRAND: Phoenix

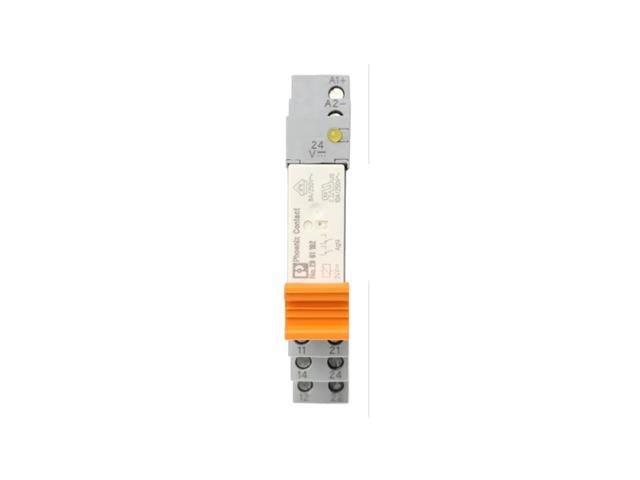

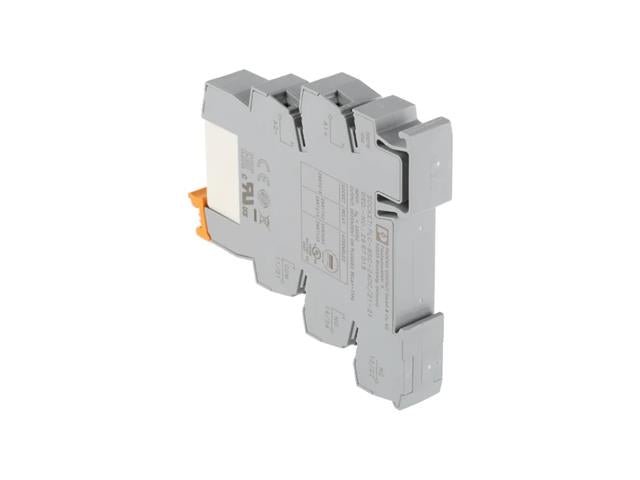

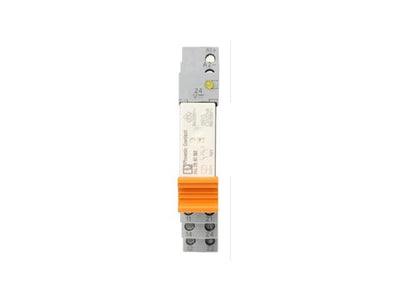

Phoenix Contact DIN Rail Mount Industrial Relay Module 24VDC 6A Non-Latching DPST (2Form A) 250V AC/DC, Surge Voltage 6KV, Coil Current:15.3ma, PLC-RSC- 24DC/21-21, IP20

Contact DIN Rail Mount Industrial Relay Module

Specifications

Insulation characteristics

  • Insulation : Safe isolation: Control side / contact side

Insulation characteristics

  • Insulation : Safe isolation: Control side / contact side
  • Overvoltage category : III
  • Pollution degree : 3

Electrical properties

  • Maximum power dissipation for nominal condition : 0.43 W
  • Test voltage (Winding/contact) : 4 kV AC (50 Hz, 1 min., winding/contact)
  • Test voltage (Changeover contact/changeover contact) : 2.5 kV AC (50 Hz, 1 min., changeover contact/changeover contact)
  • Rated surge voltage : 6 kV

Input data

Coil side

  • Nominal input voltage UN : 24 V DC
  • Input voltage range : 20.2 V DC ... 33.6 V DC (20 °C)
  • Drive and function : monostable
  • Drive (polarity) : polarized
  • Typical input current at UN : 18 mA
  • Typical response time : 8 ms
  • Typical release time : 10 ms
  • Protective circuit
    • Reverse polarity protection; Polarity protection diode
    • Freewheeling diode; Freewheeling diode
  • Operating voltage display : Yellow LED

Output data

Switching

  • Contact switching type : 2 changeover contacts
  • Type of switch contact : Single contact
  • Contact material : AgNi
  • Maximum switching voltage : 250 V AC/DC (The separating plate PLC-ATP should be installed
    for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
  • Minimum switching voltage : 5 V AC/DC (10 mA)
  • Limiting continuous current : 6 A
  • Maximum inrush current : 15 A (300 ms)
  • Min. switching current : 10 mA (5 V)

Downloads

Additional Information

Device Relay Module
Type Contact | DIN Rail Mount | Industrial
