OPTEX FTN-ST - Alarms & Accessories -

OPTEX FTN-ST - Alarms & Accessories -

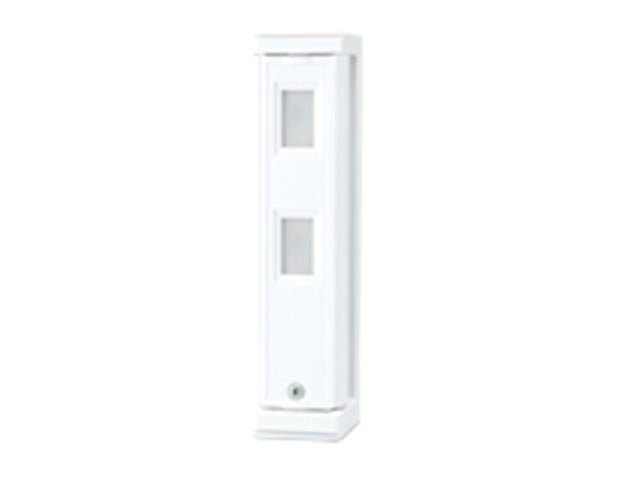

OPTEX FTN-ST
Window & Balcony Outdoor PIR

SKU: OPTEX FTN-ST

BRAND: Optex

In Stock
R 1,063.75_{(inc VAT)}
R 925.00_{(ex VAT)}

Or split into 4x interest-free
payments of R231.25 Learn more

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: PIR

Window & Balcony Outdoor PIR

Features

FTN Series offers the perfect solution for those outdoor areas where environmental disturbances and small animals may cause false alarms.

5m/2m narrow range
190° horizontal flexibility
Enhanced pet immunity
Super Multi Dimension Analysis Logic
Double conductive shielding
Intelligent AND logic

Specifications

Detection method : Passive infrared
PIR coverage : 5×1m (16'5"×3'3")
Detection length limit : 2 m, 5 m (6'7", 16'5")
Detectable speed : 0.3 - 1.5 m/s (1' - 4'11"/s)
Sensitivity : 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s))
Operation voltage : 9.5 - 18 V DC
Current draw : 17mA(max.) (at 12 V DC)
Alarm period : 2.0 ±1.0sec.
Warm-up period : Approx. 60 sec. (LED blinks)
Alarm output : N.C./N.O. Selectable 28 V DC 0.1 A (max.)
Trouble output : N.C. 28 V DC 0.1 A (max.), open when the cover is removed.
LED indicator : Light/Blink: Warm-up, alarm, masking detection (FTN-AM only)
Operating temperature : 20 - +60°C (-4 - +140F)
Environmental humidity : 95% max.
Weatherproof : IP55
Mounting : Wall (Outdoor, Indoor)
Mounting height : 0.8 - 1.2 m (2'7" - 3'11")
Weight : 100 g (3.5 oz.)
Accessories : screw (3×20 mm)×2

Downloads

User Manual - OPTEX FTN-ST

Additional Information

Device	PIR
Type	Window \| Balcony \| Outdoor
