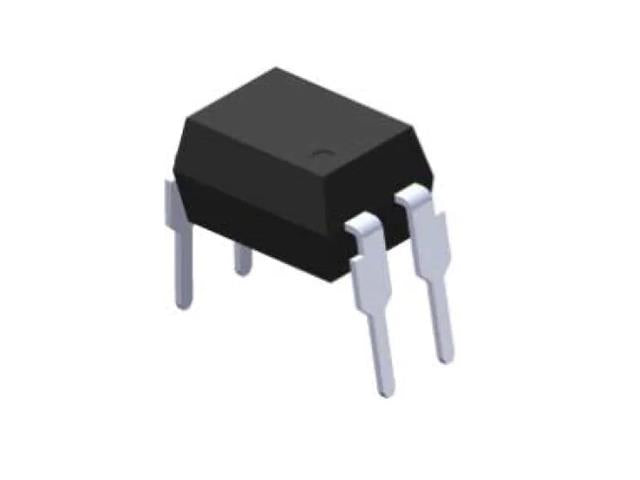

LTV817A
Optocoupler Single-CH Transistor O/P DIP4. Viso = 5000Vrms VCEO = 35V CTR(%) = 80-160

SKU: LTV817A

BRAND: Liteon

Sold Out
R 7.19_{(inc VAT)}
R 6.25_{(ex VAT)}

Or split into 4x interest-free
payments of 25% on orders over
R10 Learn more

Collections: Opto-electronics

Type: Optocouplers, Photodetectors & Photointerrupters

Category: Opto Couplers

Optocoupler Single-CH Transistor

Specifications

Package/Case: PDIP-4
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If - Forward Current: 50 mA
Maximum Collector Emitter Voltage: 35 V
Maximum Collector Current: 50 mA
Isolation Voltage: 5000 Vrms
Maximum Collector Emitter Saturation Voltage: 0.2 V
Vf - Forward Voltage: 1.4 V
Vr - Reverse Voltage: 6 V
Pd - Power Dissipation: 200 mW
Minimum Operating Temperature: - 30 C
Maximum Operating Temperature: + 100 C
Packaging: Tube
Configuration: 1 Channel
Height: 3.5 mm
Length: 4.6 mm
Width: 6.5 mm
Mounting Style: Through Hole
Current Transfer Ratio: 160 %
Fall Time: 18 us
Product Type: Transistor Output Optocouplers
Rise Time: 18 us
Subcategory: Optocouplers
Unit Weight: 200 mg

Downloads

Datasheet - LTV817A

Additional Information

Device	Optocoupler
Type	Single-CH \| Transistor
