LED MONO MINI CONTROLLER
Mini Inline Dimmer for LED Strip Lighting. 12V-24V 144W

SKU: LED MONO MINI CONTROLLER

BRAND: Communica


Or split into 4x interest-free
payments of R9.78 Learn more

Mini Inline Dimmer for LED Strip Lighting

These inline dimmer switches offer a low-profile way to control LED strip lights. Choose from 8 levels of brightness, turn lights on or off, or choose a dynamic mode for added effect. Installation is simple, just connect it between the driver and the strip. Use this with strip lighting that uses a barrel connector, such as single color ABI LED strip light kits.

Instructions:

  • To turn it on quickly press the middle button.
  • To turn it off press and hold the middle button.
  • To enable standard dimmer mode, press the lower button once, then you can press the middle button to increase brightness or press the lower button to lower brightness.
  • To enable one of the dynamic modes press the top button.
  • There are five dynamic modes
    • Switch between them by pressing the top button
    • The speed of the dynamic modes can be adjusted by pressing the middle button
    • To exit dynamic mode, click the lower button once which switches it back to standard dimmer mode.
  • Color: Black
  • Voltage: 12V - 24V

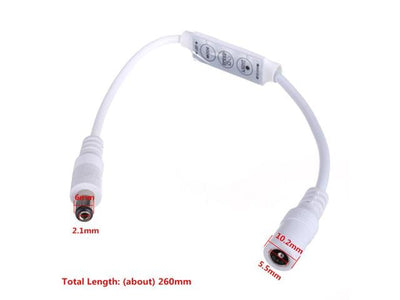

  • Dimensions: 260mm
  • Max Load: 12A (144W)
  • Retains setting after power loss
  • Dynamic modes: gradual change, signal light, strobe, breathe, candlelight
Device Dimmer Controller
Type Mini | 3 Key | 12VDC
Highlights for Single Colour LED Strips
