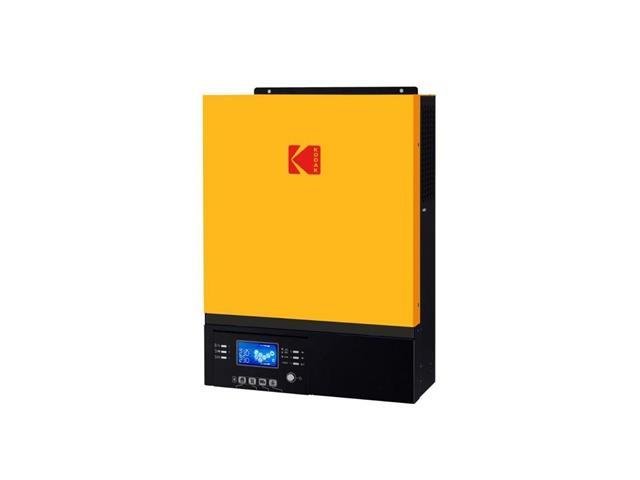

KDK OG-1.24
Kodak Pure Sine Wave Off-Grid Inverter 1.5KW 24V, Built-in MPPT, Max Solar Charge Current: 60A, Max PV Array PWR:2000W OCV:400VDC, I/P:230VAC, MPP Range @ Operating Voltage:120~ 380VDC, USB/RS485/Bluetooth/Dry-contact, {100x280x390mm} 8.5kg

SKU: KDK OG-1.24

BRAND: Kodak

In Stock
R 7,877.50_{(inc VAT)}
R 6,850.00_{(ex VAT)}

Or split into 4x interest-free
payments of R1712.50 Learn more

Collections: Loadshedding, Power

Type: Power Inverters

Category: Loadshedding, Pure Sine Wave Inverters

Pure Sine Wave Off-Grid Inverter

Feature

Removable LCD control module with multiple communications servers and ATM
Built-in Bluetooth for mobile monitoring (Android App is available)
Reserved communication port for BMS (RS485)
Replaceable fan design for ease of maintenance
Supply load from Grid or PV, even when a battery is not available
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Compatible to Utility Mains or generator input
Auto restart while AC is recovering
Cold start function

Specifications

MODEL : OG 1.24
Rated Power : 1500VA/1500W

INPUT

Voltage : 230 VAC
Selectable Voltage Range : 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode) : 230 VAC ± 5%
Surge Power : 3000VA for 5 seconds
Overload capacity : 105-130% at 10 seconds
Efficiency (Peak) : 90% ~ 93%
Transfer Time : 15 ms (For Personal Computers)
Waveform : Pure sine wave
Max. Charger Rate : 5 minutes

BATTERY

Battery Voltage : 24 VDC
Floating Charge Voltage : 27 VDC
Overcharge Protection : 33 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type : MPPT
Maximum PV Array Power : 2000 W
Start-up Voltage : 150 VDC +/- 10 VDC
MPPT Range @ Operating Voltage : 120 VDC ~ 380 VDC
Maximum PV Array Open Circuit Voltage : 400 VDC
MPPT Maximum Input Current : 9 A
Max IC : 9 A
Max lsc : 11 A
Maxmum Solar Charge Current : 60A
Maximum AC Charge Current : 40A
Maximum Charge Current : 60A

PHYSICAL

Dimension, D x W x H (mm) : 100 x 280 x 390
Net Weight (kgs) : 8.5
Communication Interface : USB/RS232/RS485/Wifi/Dry-contact

ENVIRONMENT

Altitude : 1000m and de-rate by 1% for every 100m above 1000m
Humidity : 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature : -10°C to 50°C
Storage Temperature : -15°C to 60°C
Noise Level (dB) : <60

Downloads

Additional Information

Device	Inverter
Type	Pure Sine Wave \| Off-Grid
