IDS 862-01-VXS-RAM-LC

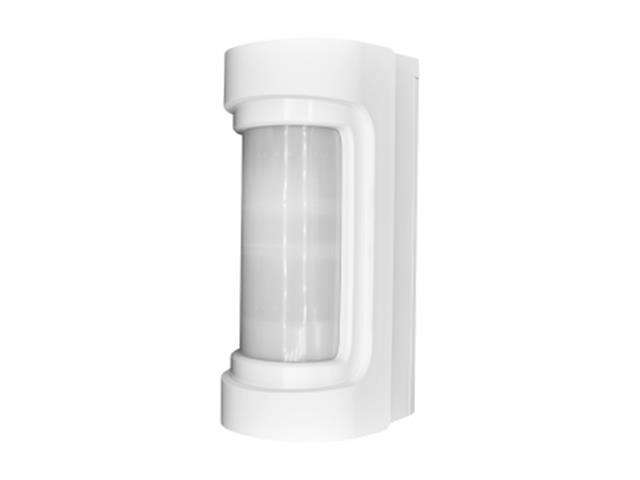

Optex VXS Ram Wireless Outdoor Low Mount Detector with Anti-masking, 12 X 12M Wide Angle PIR, Low Mount at 1m, Small Pet Friendly Requires 3RD Party TX & Batteries

• Detection Method : Passive infrared
• PIR Coverage : 40ft (12m) 90° wide / 16 zones
• PIR Distance Limit : 8 to 40ft (2.5 to 12m), 5 levels
• Detectable Speed : 1' to 6'7"/s (0.3 to 2.0m/s)
• Sensitivity : 3.6°F (2.0°C) at 0.6m/s
• Power Input : 3 to 9 VDC lithium or alkaline battery
• Current Draw (except walk test) : 10 uA standby/4mA max. at 3VDC
• Alarm Period : 2.0 ±1 sec.
• Warm-up Period : 60 sec. or less (LED blinks)
• Alarm Output : N.C./N.O. selectable-solid state switch 10 VDC 0.01 A max.
• Trouble Output : N.C./N.O. selectable-solid state switch 10 VDC 0.01 A max.
• Tamper Output : N.C./N.O. selectable-solid state switch 10 VDC 0.01 A max.
• LED Indicator : Red LED; 1. Warm-up 2. Alarm 3. Masking detection (DIP switch ON or Walk test)
• Operation Temperature : -4°F to +140°F (-20°C to +60°C)
• Maximum Humidity : 95% max
• International Protection : IP55
• Mounting : Wall, pole (outdoor, indoor)
• Mounting Height/Weight : 2'7" to 4' (0.8 to 1.2m)
• Weight : 500g (17.6oz)

Accessories :

• Connector for POWER and ALARM
• Connector for TROUBLE
• Velcro tape
• Screw (4x20mm)x2
• Masking seal x3
