ICDM-RX/TCP-32/RJ45/RJ45-RM

Name: ICDM-RX/TCP-32/RJ45/RJ45-RM - Communica [Part No: ICDM-RX/TCP-32/RJ45/RJ45-RM]
Brand: Pepperl & Fuchs
SKU: ICDM-RX/TCP-32/RJ45/RJ45-RM
Price: 39517 ZAR
Availability: OutOfStock

SKU: ICDM-RX/TCP-32/RJ45/RJ45-RM

BRAND: Pepperl & Fuchs

Sold Out
R 45,444.55_{(inc VAT)}
R 39,517.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Network Hubs & Switches

Device Server 32-Port Rack Mount RJ45 (DEVICEMASTER RTS 32-PORT RJ45)

32-Port Rack Mount Device Server

Overview

The ICDM-RX/TCP product family enables the connection of serial devices (RS-232 / RS-422 / RS-485) using a device driver (Windows or Linux) or Ethernet TCP/IP devices using socket services to an industrial Ethernet network. The integrated webserver enables complete configuration of all module parameters like serial interface, baud rate, parity, data bits, stop bits, or flow control. Products are available in different versions for DB9 or screw terminal connection.

Features

Web-based configuration
RS-232/422/485 software selectable interfaces
NEMA TS2 Certified
TCP/IP & UDP Socket Services
Device drivers (Windows and Linux)
Rack mount with RJ45 serial connectors

Specifications

Specification	Details
Product Type	32-Port Serial Device Server
Model	ICDM-RX/TCP-32RJ45/RJ45-RM

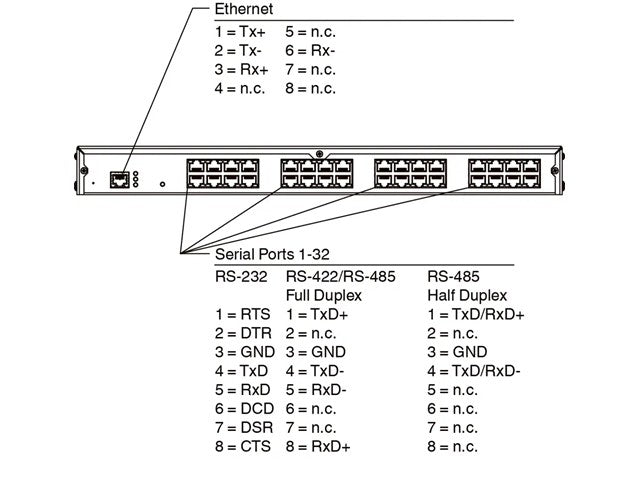

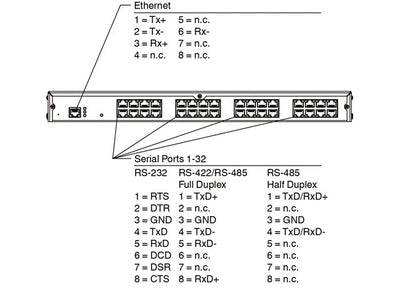

Serial Ports	32 × RJ45
Serial Interface	RS-232 / RS-422 / RS-485
RS-485 Mode	2-wire and 4-wire
Serial Baud Rate	300 bit/s to 230 kbit/s
Protocol	TCP/IP
Socket Services	TCP/IP & UDP
Ethernet Port	1 × RJ45, 10/100 Mbps
Configuration	Web-based configuration
Device Drivers	Windows and Linux
Serial Data Format	Configurable baud rate, parity, data bits, stop bits and flow control
Power Supply	90–260 V AC / internal power supply
Power Input	US and European power cords
Mounting	Rack mount
Housing Material	Steel, black coated

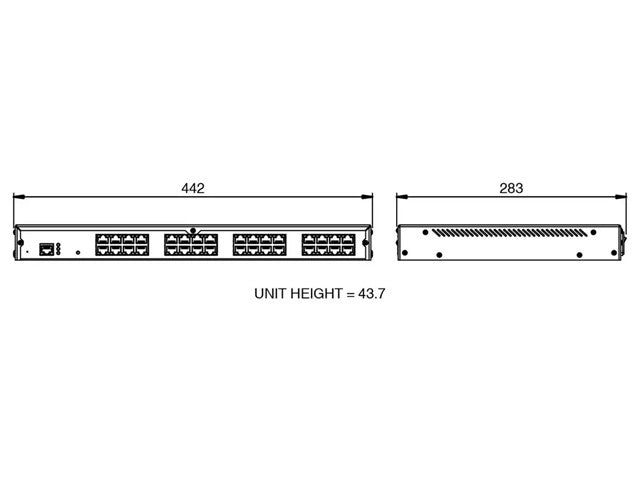

Dimensions (H × W × L)	44.2 × 273.4 × 438.2 mm
Weight	Approx. 2.89 kg
Protection Rating	IP20
Operating Temperature	−40°C to +75°C
Storage Temperature	−40°C to +85°C
Relative Humidity	Max. 95%
Operating Altitude	0–3048 m
Certifications / Compliance	CE, FCC, UL, RoHS3, NEMA TS2
Electrical Safety	EN 62368-1
EMC Compliance	EN 55024, EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32
MTBF	Approx. 12.9 years
Environmental Compliance	RoHS, WEEE, REACH

Downloads

Datasheet - ICDM-RX/TCP-32/RJ45/RJ45-RM
