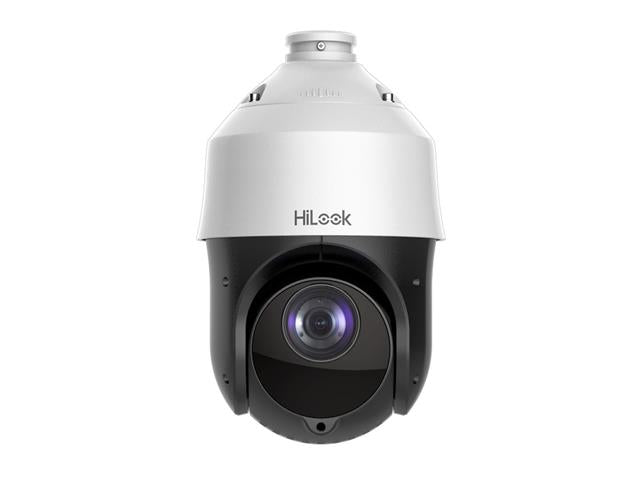

HLK PTZ-T4225I-D 4.8-120MM
HiLook PTZ Camera 2MP 4.8~120mm, Up to 100m IR, 25× Optical Zoom, 1/2.8" CMOS, Switchable TVI/AHD/CVI/CVBS (NTSC or PAL composite, BNC), 3D DNR, WDR120dB, 16×Digital Zoom, Powered by DarkFighter Analog Speed Dome, PSU:12VDC, IP66

Name: HLK PTZ-T4225I-D 4.8-120MM - Communica [Part No: HLK PTZ-T4225I-D 4.8-120MM]
Brand: HiLook
SKU: HLK PTZ-T4225I-D 4.8-120MM
Price: 4082.61 ZAR
Availability: InStock

SKU: HLK PTZ-T4225I-D 4.8-120MM

BRAND: HiLook

In Stock
R 4,695.00_{(inc VAT)}
R 4,082.61_{(ex VAT)}

Or split into 4x interest-free
payments of R1020.65 Learn more

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: PTZ Cameras

2 MP IR Turbo 4-Inch Speed Dome Camera

Feature(s)

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specifications

Camera

Image Sensor : 1/2.8" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
- PAL: 1/1 s to 1/10,000 s
- NTSC: 1/1 s to 1/10,000 s
Day & NightIR cut filter
Zoom25 × optical, 16 × digital

Lens

Focal Length : 4.8 mm to 120 mm, 25 × optical
FOV : Horizontal FOV: 57.6° to 2.5° (wide to tele)
Focus : Auto, semi-auto, manual
Aperture : F1.6 to F3.5
Zoom Speed : Approx. 3.2 s (optical, wide to tele)

Illuminator

Supplement Light Type : IR
Supplement Light Range : Up to 100 m

PTZ

Movement Range (Pan) : 360° endless
Movement Range (Tilt) : -15° to 90° (auto flip)
Pan Speed
- Pan manual speed: 0.1° to 80°/s
- Pan preset speed: 80°/s
Tilt Speed
- Tilt manual speed: 0.1° to 80°/s
- Tilt preset speed: 80°/s
Proportional Pan : Rotation speed can be adjusted automatically according to zoom multiples
Presets : 256
Patrol Scan : 10 patrols, up to 32 presets for each patrol
Pattern Scan : 5 patterns, record time over 10 minutes for each scan
Park Action : Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status DisplayYes
Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory : Yes

Video

Frame Rate
- 50 Hz: 25 fps @(1920 × 1080)
- 60 Hz: 30 fps @(1920 × 1080)

Network

ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)


Image Settings : AGC, white balance
Wide Dynamic Range (WDR) : ≥ 120 dB
Image Stabilization : EIS
Image Enhancement : BLC, HLC, 3D DNR
Privacy Mask : 8 programmable privacy masks
Regional Focus : Yes

Interface

Video Output : Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485
- Half-duplex mode
- Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General

Power : 12 VDC, max. 20 W (IR: 7 W)
Dimension : Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4")
Operating Condition : -30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language : English

Downloads

Datasheet - HLK PTZ-T4225I-D 4.8-120MM

Additional Information

Device	Camera
Type	2 MP \| IR \| Turbo \| 4-Inch \| Speed \| Dome
