• 90°@180° adjustable coverage
• IP65 weather resistance for outdoor application
• Active IR anti-masking
• Multiple enrollment methods and easy installation
• Frequency hopping against jamming for reliable transmission

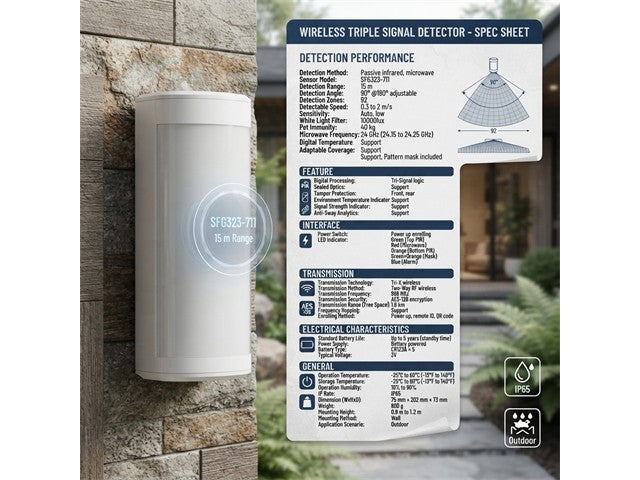

Detection Performance

• Detection Method : Passive infrared, microwave
• Sensor Model : SFG323-711
• Detection Range : 15 m
• Detection Angle : 90° @180° adjustable
• Detection Zones : 92
• Detectable Speed : 0.3 to 2m/s
• Sensitivity : Auto, low
• White Light Filter : 10000lux
• Pet Immunity : 40 kg
• Microwave Frequency : 24 GHz(24.15 to24.25 GHz)
• Digital Temperature Compensation : Support
• Anti-masking : Support
• Adaptable Coverage
  • Support,
  • Pattern mask included

Feature

• Digital Processing : Tri-Signal logic
• Sealed Optics : Support
• Tamper Protection : Front, rear
• Environment Temperature Indicator : Support
• Signal Strength Indicator : Support
• Anti-Sway Analytics : Support

Interface

• Power Switch : Power up enrolling
• LED Indicator
  • Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask),
  • Blue(Alarm)

Transmission

• Transmission Technology  : Tri-X wireless
• Transmission Method : Two-Way RF wireless
• Transmission Frequency : 868 MHz
• Transmission Security : AES-128 encryption
• Transmission Range(Free Space) : 1.6 km
• Frequency Hopping : Support
• Enrolling Method : Power up, remote ID, QR code

Electrical Characteristics

• Standard Battery Life : Up to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
• Power Supply : Battery powered
• Battery Type : CR123A × 5
• Typical Voltage : 3V

General

• Operation Temperature : -25°C to 60°C (-13°F to 140°F)
• Storage Temperature : -25°C to 60°C (-13°F to 140°F)
• Operation Humidity : 10% to 90%
• IP Rate : IP65
• Dimension(WxHxD) : 75 mm × 202 mm × 73 mm
• Weight : 600 g

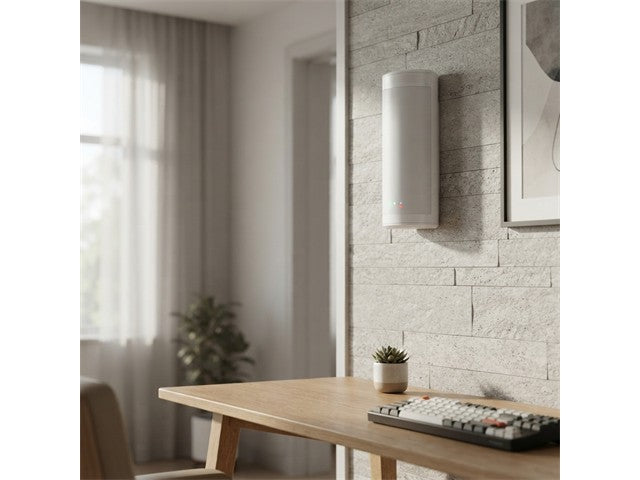

• Mounting Height : 0.8 m to 1.2 m
• Mounting Method : Wall
• Application Scenario : Outdoor
