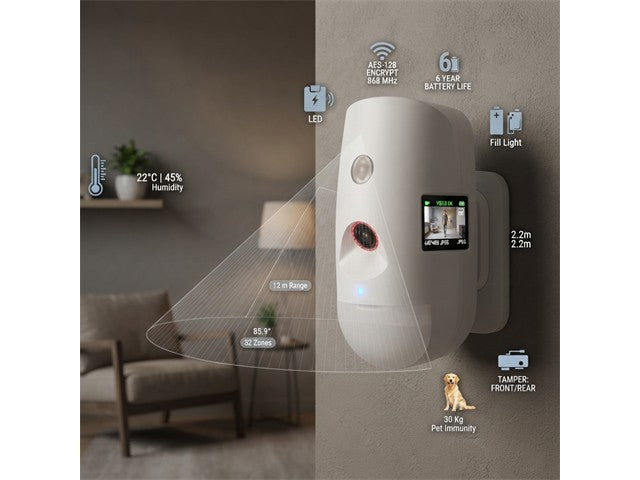

• Detection range: 12 m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Polarizing IR lens design for more uniform night illumination and excellent night shots
• Large integrated memory buffer for image storage
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected

Detection Performance

• Detection Method : Passive Infrared,Video Verification
• Detection Range : 12 m
• Detection Angle : 85.9°
• Detection Zones : 52
• Detectable Speed : 0.3 to 2 m/s
• Sensitivity : Auto, High, Pet
• Pet Immunity : 30 Kg
• White Light Filter : 6500lux
• Digital Temperature Compensation : Support
• Creep Zone Protection Support

Feature

• Digital Processing : Support
• Sealed Optics : Support
• Tamper Protection : Front, Rear
• Environment Temperature Indicator : Support
• Signal Strength Indicator : Support

Video

• Field Angle : 88°(H), 68°(V)
• Image Type : JPEG
• Resolusion : 640*480, 320*240, 160*120
• Fill Light : Infrared Light
• Fill Range : 12 m
• Day/Night Switch : Color/Black & White

Interface

• Power Switch : Power Up Enrolling
• LED Indicator : Blue(Alarm)

Transmission

• Transmission Technology : CAM-X Wireless
• Transmission Method : Two-Way RF Wireless
• Transmission Frequency : 868 MHz
• Transmission Security : AES-128 Encryption
• Transmission Range(Free Space) : 800 m
• Enrolling Method : Power up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life : 6 years in work status (being triggered and completely uploading captures twice every week)
• Power Supply : Battery Powered
• Battery Type : CR123A × 3
• Typical Voltage : 3 V

General

• Operation Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature : -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity : 10% to 90%
• Dimension(W × H × D) : 72.2 mm × 120.5 mm × 56.7 mm
• Weight : 210g

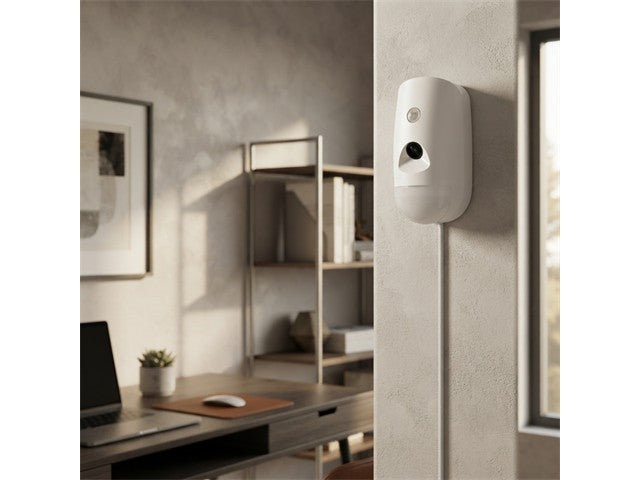

• Mounting Height : 1.8 to 2.4 m
• Mounting Method : Wall
• Application Scenario : Indoor
• Bracket : Optional Wall & Ceiling Accessory

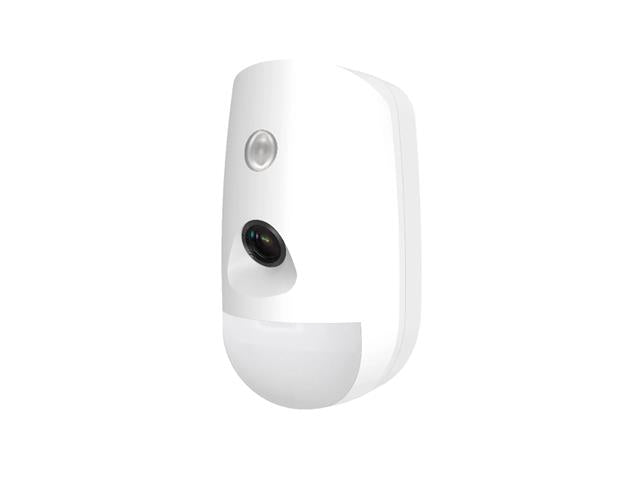

1. Datasheet - HKV DS-PDPC12P-EG2-WE
