Detection Performance

• Detection Method : Opening contact
• Detection Gap : 76 mm Max

Feature

• Digital Processing : Support
• Tamper Protection : Front,Rear
• Environment Temperature Indicator : Support
• Signal Strength Indicator : Support

Interface

• Alarm Input : Normally Closed, Normally Open, Impulse Count
• Power Switch : Power up enrolling
• LED Indicator : Blue (alarm)

Transmission

• Transmission Technology : Tri-X Wireless
• Transmission Method : Two-Way RF Wireless
• Transmission Frequency : 868 MHz
• Transmission Security : AES-128 Encryption
• Transmission Range(Free Space) : 1.6 km
• Frequency Hopping : Support
• Enrolling Method : Power up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life : Up to 5 years (standby time)
• Power Supply : Battery powered
• Battery Type : CR123A x 1
• Typical Voltage : 3V

General

• Operation Temperature : -20°C to 60°C (-4°F to 140°F)
• Storage Temperature : -30°C to 60°C (-22°F to 149°F)
• Operation Humidity : 10% to 90%
• Dimension(WxHxD) :

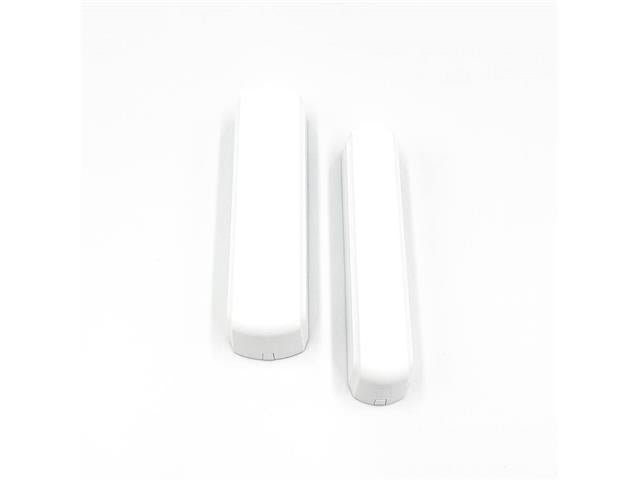

  • Sensor: 40.5 mm × 146 mm × 40.9 mm
  • Magnetic stick: 30.5 mm × 146 mm × 40.9 mm
• Weight : 247 g
• Application Scenario : Outdoor, IP66

1. Datasheet - HKV DS-PDMCX-E-WE
