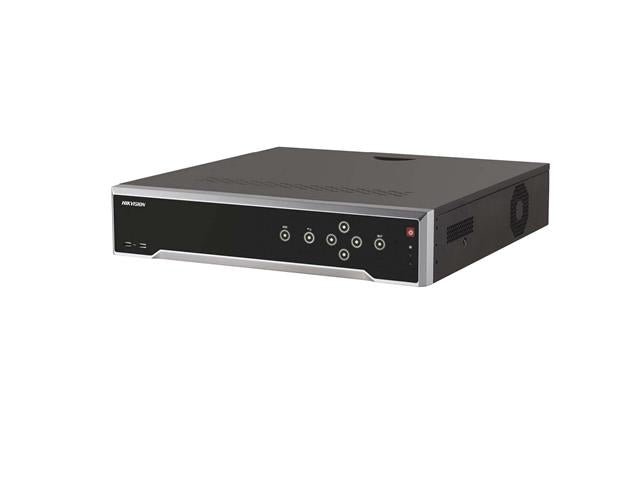

HKV DS-7716NXI-I4/S
Hikvision AcuSense 16ch 4K NVR, H.265/H.265+/H.264/H.264+/MPEG4/ MPEG4, 12-8-6-5-4-3MP, Two-Way Audio, 4xSATA, 2xUSB 2.0 & 1xUSB3.0, 1xHDMI, VGA, Up to 8TB CAP per Disk

Name: HKV DS-7716NXI-I4/S - Communica [Part No: HKV DS-7716NXI-I4/S]
Brand: Hikvision
SKU: HKV DS-7716NXI-I4/S
Price: 7952 ZAR
Availability: InStock

SKU: HKV DS-7716NXI-I4/S

BRAND: Hikvision

In Stock
R 9,144.80_{(inc VAT)}
R 7,952.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: NVR

AcuSense 16ch 4K NVR

Feature(s)

Professional and Reliable

New logical and visualized GUI design
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected

Video Input and Transmission

Up to 16/32-ch 12 MP IP cameras can be connected
Connectable to the third-party network cameras

Compression and Recording

H.265+ compression effectively reduces the storage space and costs by up to 75%
Full channel recording at up to 12 MP resolution

HD Video Output

HDMI/VGA output provided
HDMI video output at up to 4K (3840 × 2160) resolution

Storage and Playback

Up to 4 SATA interfaces for HDD connection
12-ch synchronous playback at up to 1080p resolution
Normal/Important/Custom video playback
Important files management
HDD health monitoring

Smart &POS Function

Supports multiple VCA (Video Content Analytics) events
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
POS information overlay on live view and playback
POS triggered recording and alarm

Network & Ethernet Access

Hik-Connect for easy network management
Two Gigabit Ethernet network interfaces

Specifications

Perimeter Protection

Human/Vehicle Analysis : False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.

Video And Audio

IP Video Input : 16-ch
HDMI Output :
- 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI. ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA Output : HDMI,VGA
CVBS Outpu : t1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Incoming Bandwidth : 256 Mbps/200 Mbps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format : H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability : 12-ch@1080p
Synchronous Playback : 16-ch
Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,

Network

Network Interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA : 4 SATA interfaces for four 3.5-inch HDDs
ESATA : 1 eSATA interface
Capacity : Up to 8 TB capacity for each HDD
Serial Interface : RS-485 (half-duplex), RS-232, Keyboard
USB Interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out : 16/4

General

Power Supply : 100 to 240 VAC ≤ 80 W
Consumption : ≤ 30 W
Working Temperature : -10° C to +55° C (+14° F to +131° F)
Working Humidity : 10 to 90 %
Chassis : 1.5U chassis
Dimension (W × D × H) : 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8"), ≤ 5 kg (11 lb)

Downloads

Datasheet - HKV DS-7716NXI-I4/4S

Additional Information

Device	NVR
Type	AcuSense \| 16ch \| 4K
