HKV DS-1005KI
USB Keyboard with Joystick

Name: HKV DS-1005KI - Communica [Part No: HKV DS-1005KI]
Brand: Hikvision
SKU: HKV DS-1005KI
Price: 3475 ZAR
Availability: InStock

SKU: HKV DS-1005KI

BRAND: Hikvision

In Stock
R 3,996.25_{(inc VAT)}
R 3,475.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: USB Multifunction Controller Joystick

USB Keyboard with Joystick

Overview

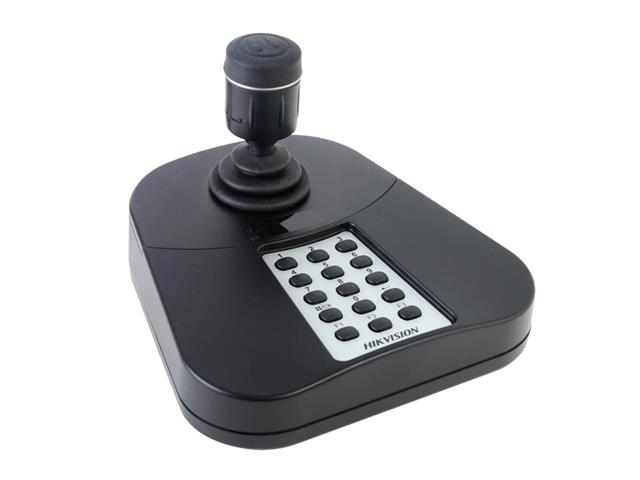

DS-1005KI is a USB keyboard that can be accessed directly by the client software, iVMS Series platform software, DVR and PC-DVR, and can realize functions such as windows switching, PTZ control, picture capture, recording, etc.

DS-1005KI is compatible with the attached USB joystick via USB HID protocol, and can access third-party platform software. It provides ample programmable buttons for setting custom functions and has the advantage of a simple interface and easy operation.

Feature(s)

Power Supply and Communication by USB Port Directly
3D PTZ Control and 2 Joystick Control Buttons
Up to 15 Programmable Buttons Are Available
Supports Digital Tube To Display the Input Content
Indicators Show Keyboard’s Operation Status
Compatible with Various Client and Platform Software
Supports USB HID Protocol

Specifications

Compatible System : Windows XP/7/8/8.1
Interface Type : USB 2.0, DirectX
Control : Joystick (3-axis control, rotating zoom)
Dimensions : 167 mm x 177.5 mm x 116 mm (6.57" x 6.99" x 4.57")
Operating Temperature : -10° C to +55° C
Operating Humidity : 10% to 90% (non-condensing)
Power Supply : 5 VDC via USB
Consumption : ≤5 W

Downloads

Datasheet - HKV DS-1005KI

Additional Information

Device	Keyboard
Type	USB \| Joystick
