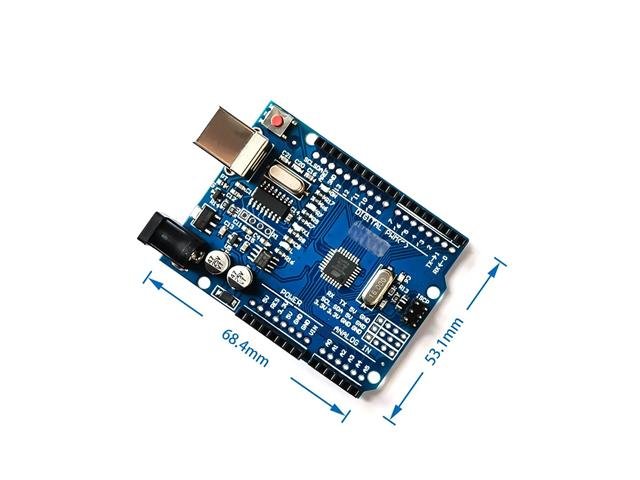

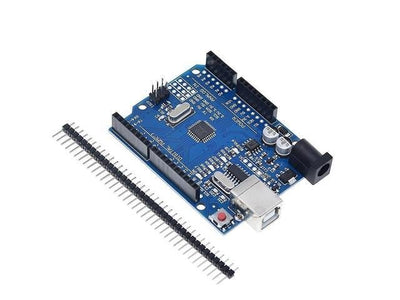

HKD UNO REV3 CH340
Compatible with Arduino ATMEGA328 UNO REV3. Uses CH340 USB Driver

SKU: HKD UNO REV3 CH340

BRAND: Communica


Arduino ATMEGA328 UNO REV3

  • Digital I / O Digital input / output, a total of 0 ~ 13.
  • Analog I / O Analog input / output, a total of 0 ~ 5.
  • Support the ISP download function.
  • The input voltage: when connected to the computer USB without external power supply, external power supply 5V ~ 9V DC voltage input.
  • Output voltage: 5 V dc output voltage and 3.3 V dc output voltage.
  • Using Atmel Atmega328 microprocessor controller
  • Controller: ATmega328P-AU USB to serial
  • Chip: CH340G
  • Input Voltage (recommended): 7-12V
  • Digital IO pins: 14 (of which 6 provide PWM output)
  • Analog input pins: 6 DC
  • Current per I/O Pin: 40 mA
  • USB Port: type B USB
  • Clock Speed: 16 MHz
  • Operating voltage: 5V
  • Input Voltage (limits): 6-20V
Device UNO REV3
Type Arduino | ATMEGA328
