HKD STEPPER DRIVER +FAN DM860H

Name: HKD STEPPER DRIVER +FAN DM860H - Communica [Part No: HKD STEPPER DRIVER +FAN DM860H]
Brand: Communica
SKU: HKD STEPPER DRIVER +FAN DM860H
Price: 643.48 ZAR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: HKD STEPPER DRIVER +FAN DM860H

BRAND: Communica

Sold Out
R 740.00_{(inc VAT)}
R 643.48_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits

Type: Motors, Motor Drivers & Controllers

Category: Stepper Motors

DM860H DSP Digital Stepper Motor with Fan. Can Drive 4-Wire, 8-Wire Two-phase Stepper Motor. Voltage Input Range: 18~80V AC / 24-110V DC. Maximum Current: 7.2A, Resolution: 0.1A. Subdivision Range: 400~25600PPR

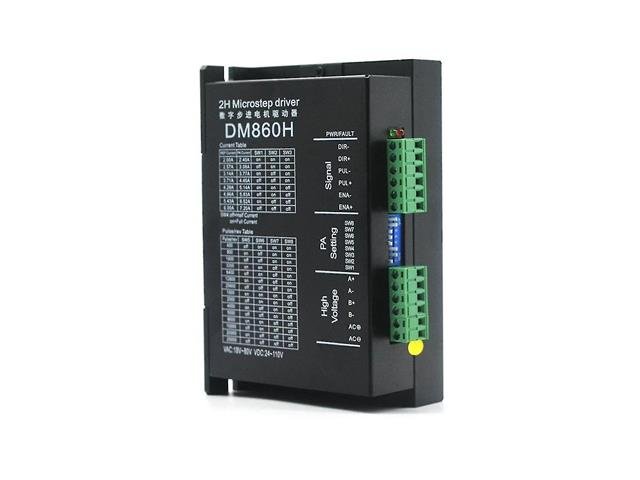

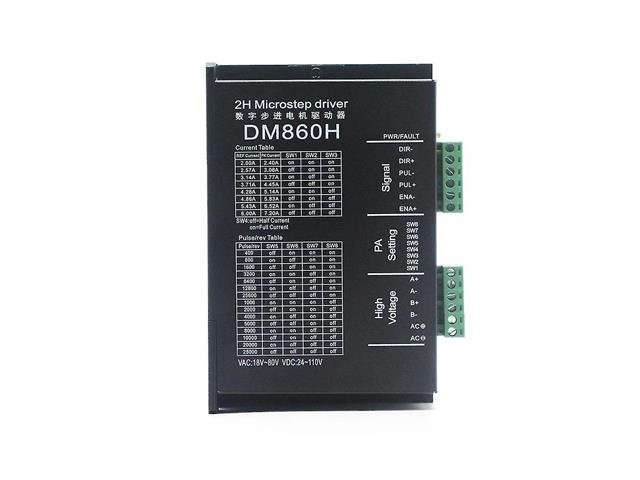

DSP Digital Stepper Motor with Fan

Features

24V-110V DC/18V-80V AC power supply
H-bridge bipolar constant phase current drive
Current can be up to 7.2A eight output currents can be selected
15 subdivision modes selectable up to 128 subdivisions
Input signal high-speed opto-isolation

Standard single pulse interface
Off-line hold function

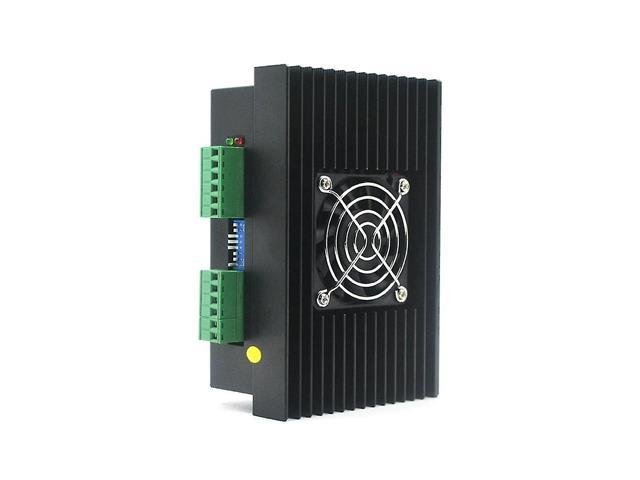

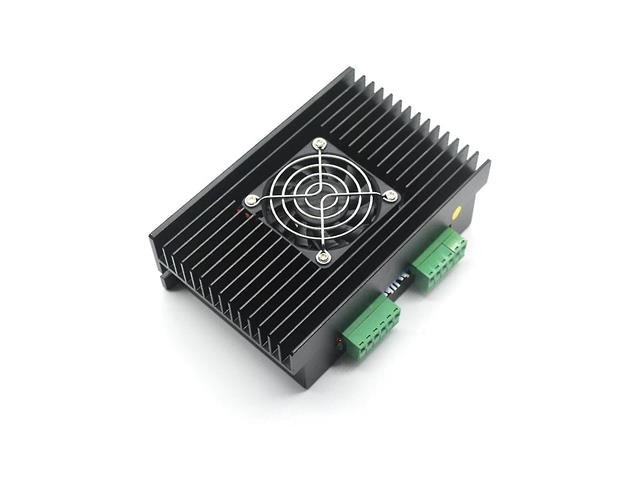

Large cooling fan for efficient heat dissipation
To provide energy-saving semi-automatic current lock function.
Built-in temperature protection and overcurrent protection
Colour:Black
Material:ABS

Specifications

Can drive 4-wire, 8-wire two-phase stepper motor
Voltage input range: 18~80V AC / 24-110V DC
Maximum current: 7.2A, resolution: 0.1A
Subdivision range: 400~25600ppr
Signal input: differential / single-ended, pulse / direction or double pulse
Impulse response frequency: 200KHz
Built-in micro-segment
Power-on parameter auto-tuning function
Precision current control greatly reduces motor heating
The current is automatically halved at rest
Optically isolated signal input, strong anti-interference ability
With overvoltage, overcurrent and other protection fun

Additional Information

Device	Motor Driver
Type	DSP \| Digital \| with Fan
