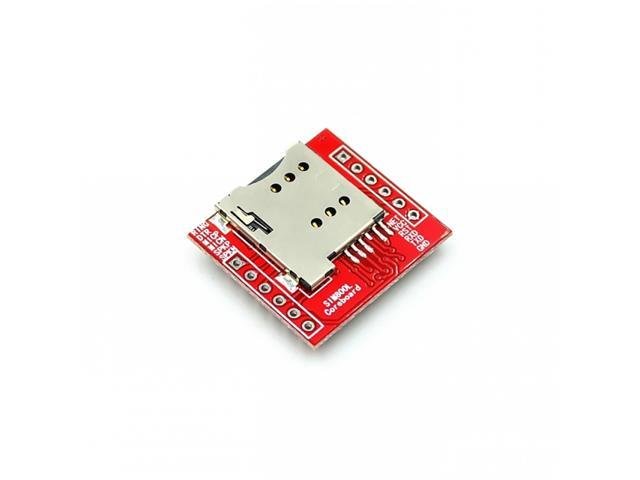

SIM800L GSM GPRS Module Board MicroSIM Transfer Card Core Board With Antenna
The SIM800L module supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. The SIM800L communicates with microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands. It also has built-in level translation, so it can work with microcontroller of higher voltage than 2.8V default. Besides, the board also supports A-GPS technique which is called mobile positioning and gets position by mobile network. This features make it can also be a tracker module.
- TTL Serial Port, Directly Connect to the Microcontroller.
- Charge the Module, It will Automatically Boot and Search for Network.
- Onboard Signal Indicator will always be flashing. It flashes slowly when there is a signal; it flashes quickly when there is no signal.
- Chip: SIM800L
- Voltage: DC 3.7-4.2V(1A CURRENT PEAK)
- Support Networks: Quad-band Network

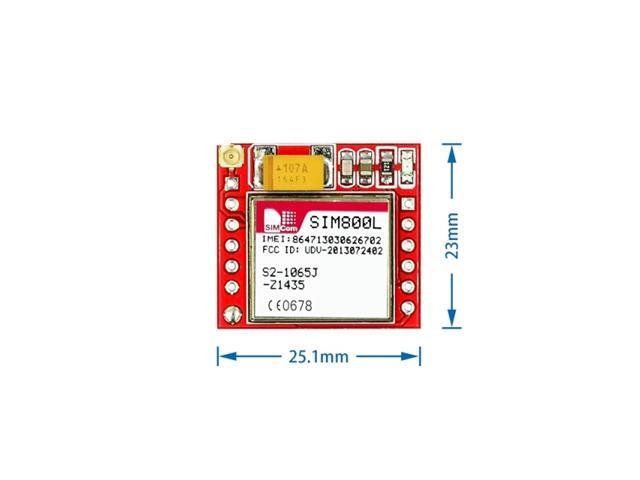

- Module Size: 2.5 X 2.3CM

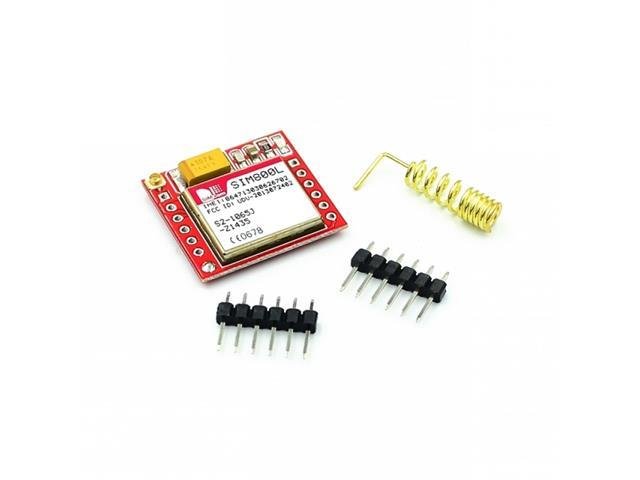

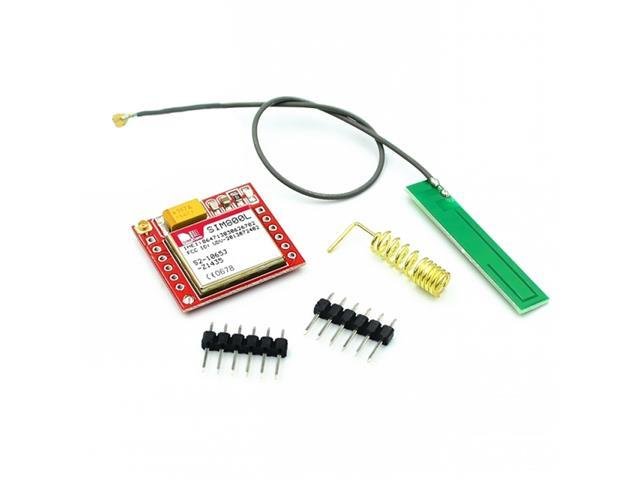

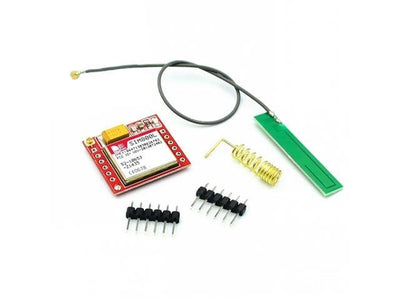

- SIM800L GPRS GSM Module with Antenna Cable
- Quad-band 850/900/1800/1900MHZ
- Used in GSM Based Projects, GPS Based Projects, Robotics Projects, OR 8051/AVR/ARM/PIC/Arduino/Raspberry-PI Based Projects
- GPRS Multi-Slot CLASS12 Connectivity: Max. 85.6KBPS(DOWN-LOAD/UP-LOAD)
- GPRS Mobile Station Class B
- Controlled by at command (3GPP TS 27.007, 27.005 and SIMCOM ENHANCED AT COMMANDS)
- Supports Real Time Clock
- Supply Voltage Range 3.4V ~ 4.4V
- Supports A-GPS
- Supports 3.0V TO 5.0V Logic Level
- Low Power Consumption, 1MA in Sleep Mode
Device |
Module |
Type |
SIM800L | GPRS | GSM |
