Rosbot Main Control Board Only. (Chassis not included) Robot Motion Control Board, that can support 4 DC or 2 Stepper Motors at the same timev

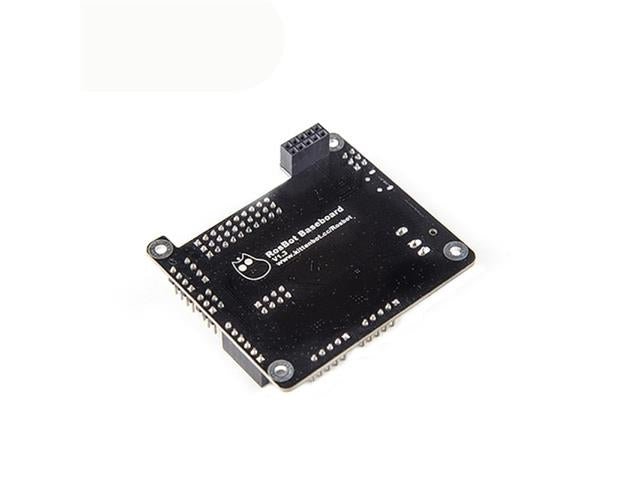

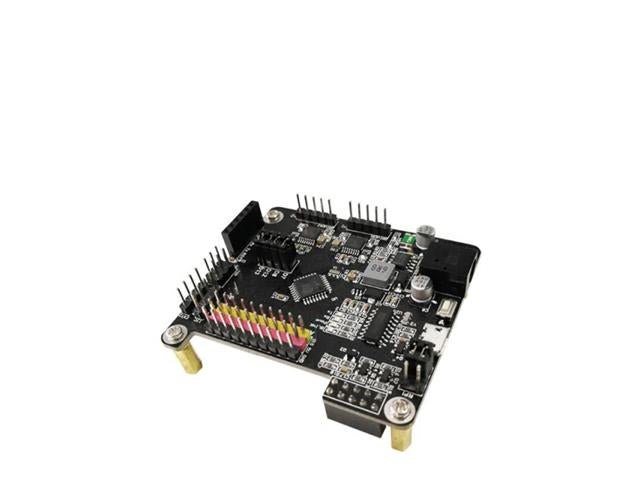

Rosbot Main Control Board

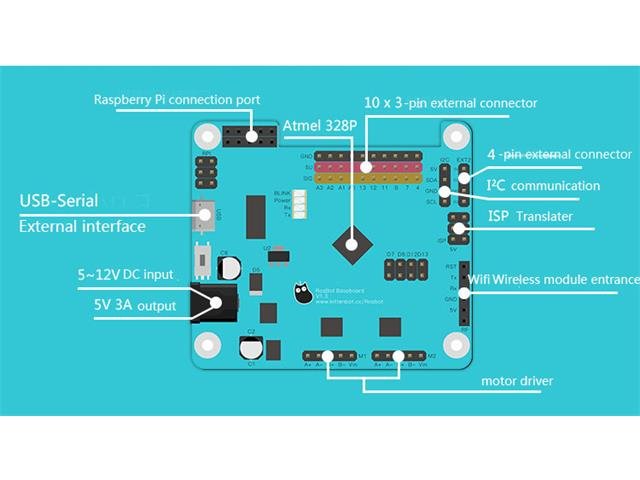

Features
- RosBot is a motherboard based on Scratch3.0 design
- Based on Arduino UNO motherboard, on board 2 dual H-bridge motor drives
- Can be upgraded with Raspberry Pi 2, Raspberry Pi 3B+, and Intel UP Board single board computer

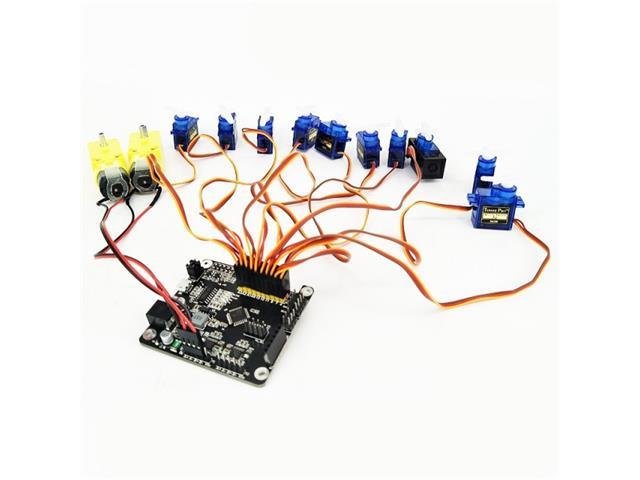

- Supports 4 DC motors or 2 stepper motors, which can support 13 sensors at the same time
Specifications
- 5-12V DC input
- 5V 3A Output
- Size: 65*58*13mm(L*W*H)
- PCB Board thickness: 1.6mm
Package Included:
- 1 x Robot Development Board (only a development board)
Additional Information
Device |
Control Board |
Type |
Rosbot | Main |
