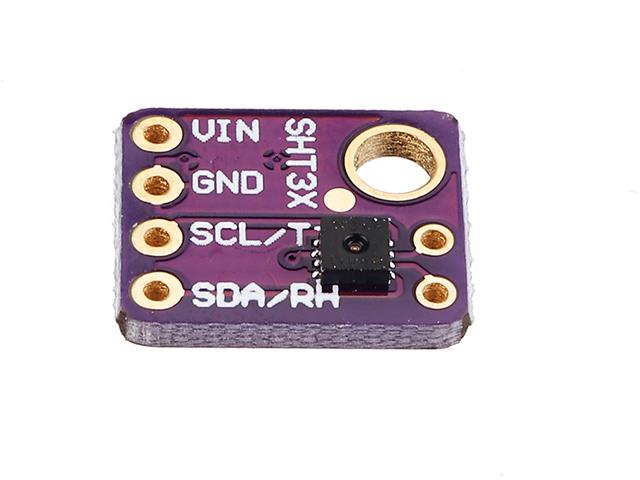

The digital temperature and humidity sensor module uses the SHT30 chip, and the measurement data is factory corrected, linearized, and temperature compensated. With temperature and humidity alarm output and software and hardware reset function. Avoid use in volatile organic environments in order not to damage the device.
- Optimal working temperature and humidity range: 5 ° C ~ 60 ° C 20% RH ~ 80% RH
- Working voltage: 2.4 ~ 5.5V (recommended 3.3V)
- Humidity measurement range: 0 to 10% RH
- Humidity accuracy error: ±3% RH
- Resolution: 0.01% RH
- Repeatability: 0.10-0.25% RH
- Response time: 8s
- Long-term drift: <0.25% RH/year
- Temperature measurement range: -40 ° C ~ 125 ° C
- Temperature accuracy error: ±0.3 °C
- Resolution: 0.015 ° C
- Repeatability: 0.06-0.24 °C
- Response time: >2s
Package Included:

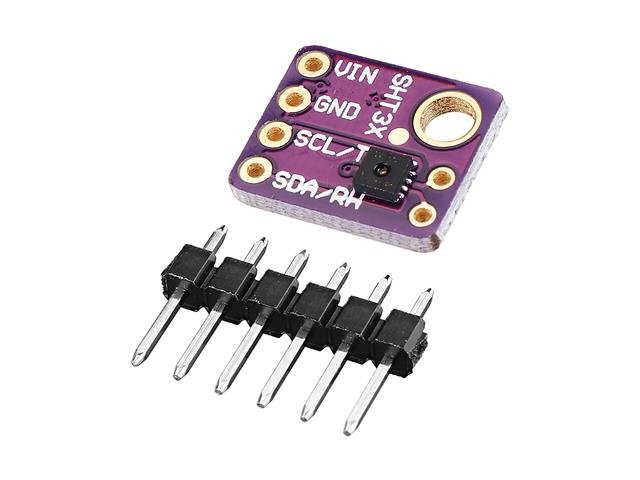

- 1 x SHT30 3.3V Digital Temperature and Humidity Sensor Module
| Device |
Sensor Module |
| Type |
Temperature | Humidity |
