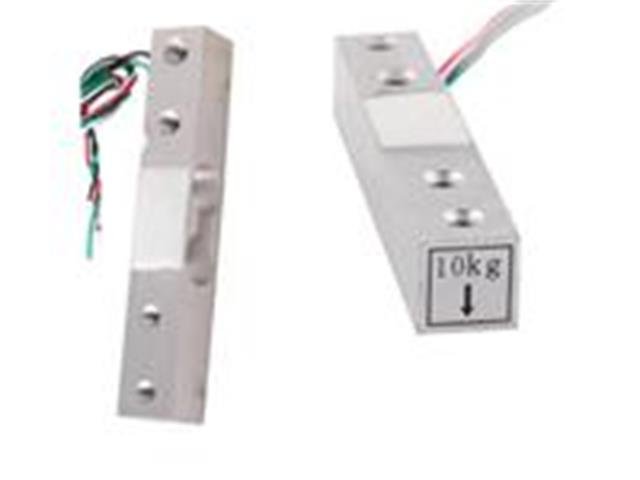

HKD ELECTRONIC LOAD CELL 10KG
10KG Load Cell Sensor. Rated Output: 1.0MV/V±0.15MV/V. Zero Output: ±0.1MV/V, Connection: Red Wire to +E, Black Wire to -E, GWireen re to +S, White Wire to -S

SKU: HKD ELECTRONIC LOAD CELL 10KG

BRAND: Communica


Or split into 4x interest-free
payments of R9.13 Learn more

10KG Load Cell Sensor

  • Rated Load: 10Kg
  • Rated Output: 1.0mV/V±0.15mV/V
  • Zero Output: ±0.1mV/V
  • Creep: 0.03%F.S./30min
  • Input End: Red+(power), Black-(power)
  • Output End: Green+(signal), White-(signal)
  • Recommended operating voltage: 3 ~ 12 VDC
  • Maximum operating voltage: 10 VDC
  • Input Impedance: 1115±10%Ω
  • Output Impedance: 1000±10%Ω
  • Connection: red wire to +E,black wire to -E,Green wire to +S, White wire to -S
Device Cell Sensor
Type 10KG | Load
References

Arduino Scale With Load Cell and HX711 Amplifier
