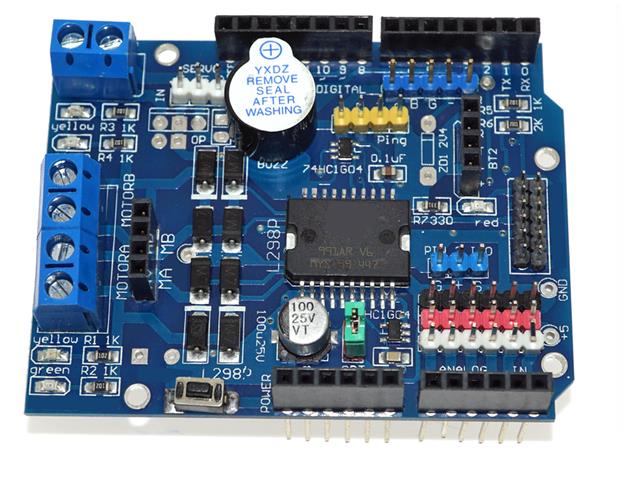

This module is ideally suited to motor control to your project. This is the L298N Dual H-Bridge module which allows you to build in 2 controlled motors to your projects, controlling the speed with current. This can be used with a wide range of microcontrollers including Arduino and Raspberry Pi. The module allows the use of PWM control of up to 2 DC motors or a single 2/4 phase stepper motor, the connections of which are screwed into the terminals. The module can be powered using 5V-35V even though marked at 12V, furthermore if powered by a voltage greater then 7V the 5V terminal will be able to act as a 5V power source.
- Logical part of the input voltage VD : 5V
- Driven part of the input voltage VS : VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
- Logical part of the work current Iss : <36mA
- Driven part of the operating current Io : <2A
- Maximum power dissipation : 25W (T = 75 Celsius)
- Control signal input level : High 2.3V low -0.3V
- Working temperature : -25 + 130 Celsius
- Hardware interface : 5.0mm pitch terminal
- Belt clip and can be controlled via front row access signal
- Drive Type : Dual power H-bridge driver
- Pin occupancy : D4 ~ D7 direct drive motor
- Supports PWM / PLL mode motor speed control
- Size : 68 X 53mm
| Device |
Motor Driver Shield |
| Type |
L298 | Dual | Bridge | DC |
