HKD DC MOTOR SHIELD L293D 1.2A
4 x H-Bridge Motor Drivers 0.6A (1.2A PEAK). Can Drive: Motor Voltages From 4.5VDC TO 16VDC. (Up To 36V IF C6 AND C7 Are Upgraded).---Up to 4 Bi-Directional DC Motors with Individual 8-Bit Speed Selection (256 Speeds). Up To 2 Stepper Motors (Uni Or Bipo

Name: HKD DC MOTOR SHIELD L293D 1.2A - Communica [Part No: HKD DC MOTOR SHIELD L293D 1.2A]
Brand: Communica
SKU: HKD DC MOTOR SHIELD L293D 1.2A
Price: 51.30 ZAR
Availability: OutOfStock

SKU: HKD DC MOTOR SHIELD L293D 1.2A

BRAND: Communica

Sold Out
R 59.00_{(inc VAT)}
R 51.30_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, IoT, Internet of things, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Iot, Motor Drivers

0.6A 4 x H-Bridge Motor Drivers

Overview

L293D use a 16-pin DIP package, its internal integration is a bipolar H – bridge circuit. This kind of bipolar pulse width method has many advantages, such as the current continuous, or microcurrent vibration when the motor stops, which has a lubrication effect. It can eliminate the dead zone of static friction when positive and negative.

Features

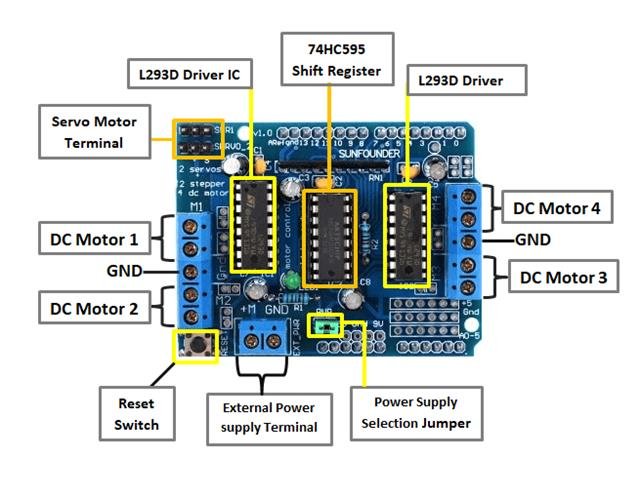

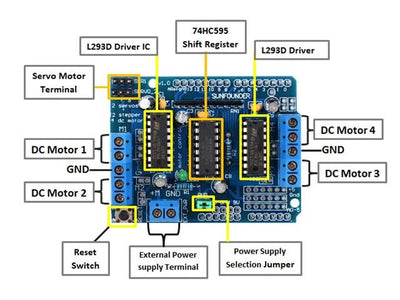

2 interface for 5V Servo connected to For Arduino’s high-resolution dedicated timer – no jitter!
Can drive 4 DC motors or 2 stepper motors or 2 Servo
Up to 4 bi-directional DC motors with individual 8-bit speed selection
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
Pull-down resistors keep motors disabled during power-up
reset button
2 external terminal power interfaces, for separate logic/motor supplies
Tested compatible with Arduino Mega, Diecimila & Duemilanove

Additional Information

Device	Motor Drivers
Type	0.6A \| 4 x H-Bridge
