HKD CP2102 USB2.0 TTL UART MODUL
CP2102 USB 2.0 to TTL UART Board

Name: HKD CP2102 USB2.0 TTL UART MODUL - Communica [Part No: HKD CP2102 USB2.0 TTL UART MODUL]
Brand: Communica
SKU: HKD CP2102 USB2.0 TTL UART MODUL
Price: 47.83 ZAR
Availability: OutOfStock

SKU: HKD CP2102 USB2.0 TTL UART MODUL

BRAND: Communica

Sold Out
R 55.00_{(inc VAT)}
R 47.83_{(ex VAT)}

Or split into 4x interest-free
payments of R11.95 Learn more

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, USB 2.0 to TTL UART Board

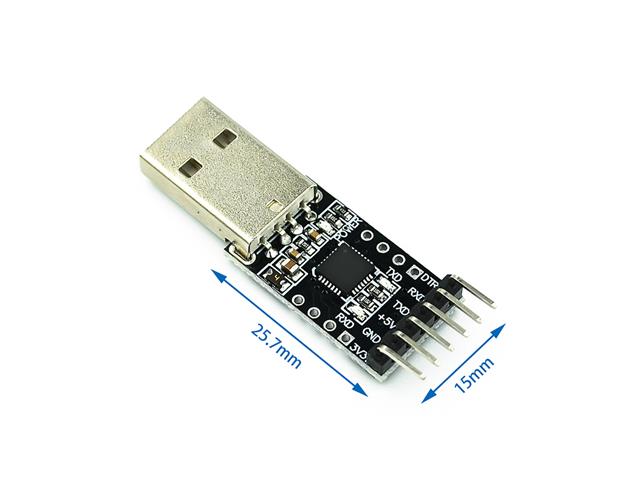

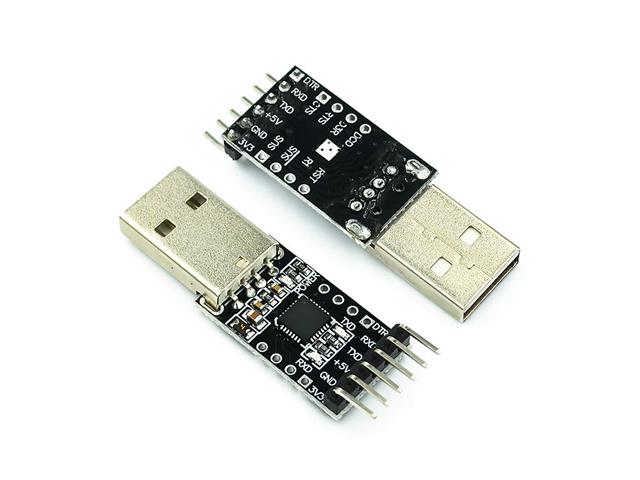

CP2102 USB 2.0 to TTL UART Board

Features

The main chip is CP2102, which generates virtual serial port after installing driver
USB power, lead out interface includes 3.3V (< 40mA), 5V, GND, TX, Rx, signal pin level is 3.3V, positive logic
The on-board status indicator and transceiver indicator will be on after the driver is correctly installed. The transceiver indicator will flash when communicating. The higher the baud rate, the lower the brightness
Supports baud rate from 300BPS to 1Mbps
Communication format support: 1) 5,6,7,8 data bits; 2) 1,1.5,2 stop bits are supported; 3) Odd, even, mark, space, none check
Support operating system: Windows Vista / XP / Server 2003 / 200, MAC OS-X / OS-9, Linux
The USB head is male and can be directly connected to the USB port of the computer
SMT technology is used to produce SMT components with stable quality

Specifications

USB Interface: Type A USB male connector
Operating Voltage: 5V.
Logic Voltage: 5V.
3.3V power supply output current: 100mA
Pins output method: 6P-2.54mm pin header
Serial baud rate: Up to 115200bps.
Support USB1.1, USB2.0
USB to serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, Linux, MAC

Additional Information

Device	Board
Type	CP2102 USB 2.0 \| TTL UART
