HKD CP2102 USB2.0 TTL UART MODUL

SKU: HKD CP2102 USB2.0 TTL UART MODUL

BRAND: Communica

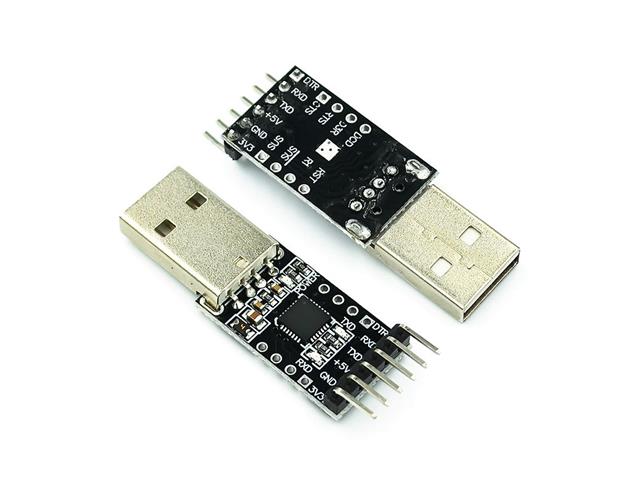

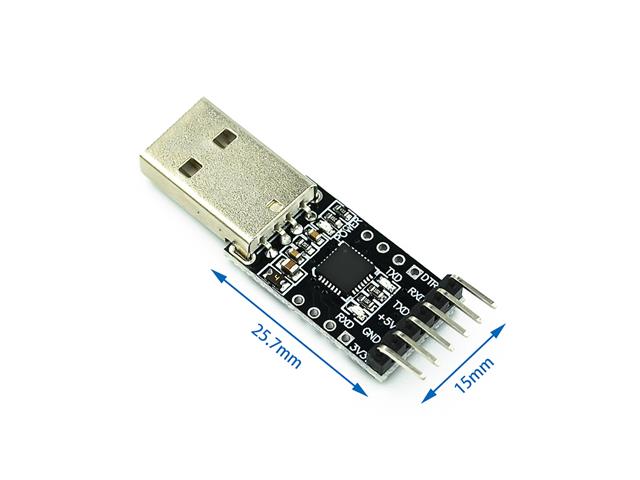

CP2102 USB 2.0 to TTL UART Board

CP2102 USB 2.0 to TTL UART Board

Features

  • The main chip is CP2102, which generates virtual serial port after installing driver
  • USB power, lead out interface includes 3.3V (< 40mA), 5V, GND, TX, Rx, signal pin level is 3.3V, positive logic
  • The on-board status indicator and transceiver indicator will be on after the driver is correctly installed. The transceiver indicator will flash when communicating. The higher the baud rate, the lower the brightness
  • Supports baud rate from 300BPS to 1Mbps
  • Communication format support: 1) 5,6,7,8 data bits; 2) 1,1.5,2 stop bits are supported; 3) Odd, even, mark, space, none check
  • Support operating system: Windows Vista / XP / Server 2003 / 200, MAC OS-X / OS-9, Linux
  • The USB head is male and can be directly connected to the USB port of the computer
  • SMT technology is used to produce SMT components with stable quality

Specifications

  • USB Interface: Type A USB male connector
  • Operating Voltage: 5V.
  • Logic Voltage: 5V.
  • 3.3V power supply output current: 100mA
  • Pins output method: 6P-2.54mm pin header
  • Serial baud rate: Up to 115200bps.
  • Support USB1.1, USB2.0
  • USB to serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, Linux, MAC

Additional Information

Device Board
Type CP2102 USB 2.0 | TTL UART
