HKD BLUETOOTH TRCVR MODULE HC06
Compatible HC-06 Wireless Bluetooth Transceiver Module- Serial for Arduino. 3.3V LDO.Input Voltage: 3.6V-6VMAX (Do Not Exceed 7V)

Name: HKD BLUETOOTH TRCVR MODULE HC06 - Communica [Part No: HKD BLUETOOTH TRCVR MODULE HC06]
Brand: Communica
SKU: HKD BLUETOOTH TRCVR MODULE HC06
Price: 82.61 ZAR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: HKD BLUETOOTH TRCVR MODULE HC06

BRAND: Communica

Sold Out
R 95.00_{(inc VAT)}
R 82.61_{(ex VAT)}

Or split into 4x interest-free
payments of R20.65 Learn more

Collections: IoT, Internet of things

Type: Communications

Category: Bluetooth Module, Iot

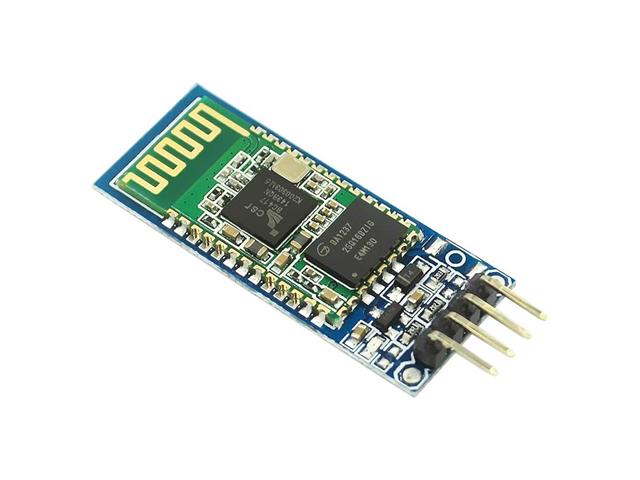

Wireless Bluetooth Transceiver Module

Features

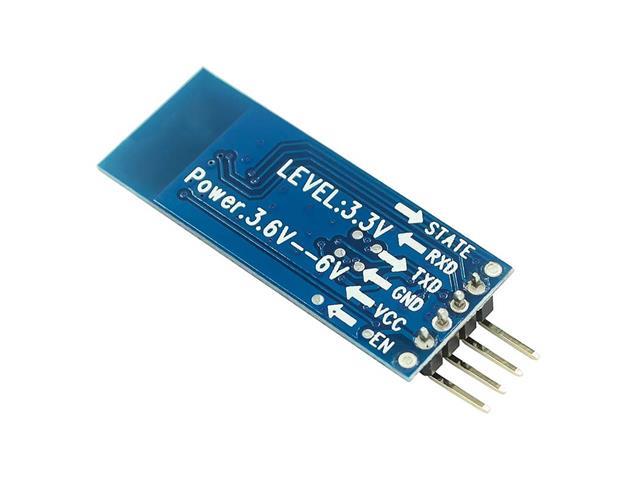

The core module uses hc-06 slave module to lead out interfaces, including VCC, GND, TXD, RXD, and reserved LED status output pin. The single chip microcomputer can judge whether Bluetooth has been connected through the pin status, and the key pin is invalid for the slave
The LED indicates the Bluetooth connection status, flashing indicates that there is no Bluetooth connection, and constant light indicates that Bluetooth is connected and the port is opened
The backplane is 3.3V LDO, the input voltage is 3.6 ~ 6V, the current is about 30mA when not paired, about 10mA after pairing, and the input voltage shall not exceed 7V!
The interface level is 3.3V, which can be directly connected to all kinds of single chip microcomputer (51, AVR, PIC, arm, MSP430, etc.), and 5V single chip microcomputer can also be directly connected without MAX232

Additional Information

Device	Transceiver Module
Type	Wireless \| Bluetooth
