HKD 1XDOT MATRIX MODULE MAX7219

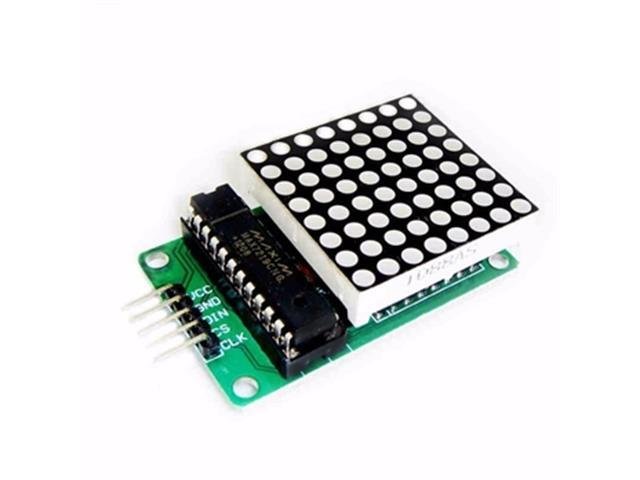

8X8 LED Dot Matrix Display Module MAX7219

Name: HKD 1XDOT MATRIX MODULE MAX7219 - Communica [Part No: HKD 1XDOT MATRIX MODULE MAX7219]
Brand: Communica
SKU: HKD 1XDOT MATRIX MODULE MAX7219
Price: 42.61 ZAR
Availability: InStock

SKU: HKD 1XDOT MATRIX MODULE MAX7219

BRAND: Communica

In Stock
R 49.00_{(inc VAT)}
R 42.61_{(ex VAT)}

Or split into 4x interest-free
payments of R10.65 Learn more

Collections: IoT, Internet of things

Type: Displays

Category: Iot, LED Dot Matrix Display Module

8X8 LED Dot Matrix Display Module

Features

Dot Matrix MAX7219 is arduino projects,for science kits for kids,science projects, robot car on high school, primary school, secondary school.
A single module can drive an 8 * 8 common cathode lattice.
Module Operating voltage: 5V.
Module size: 5 cm long X 3.2 cm wide X 1.5 cm high.
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed.
Module with input and output interfaces, supports multiple modules cascade.
Led colour:Red.
The module left as an input port to the output port on the right.
The control of a single module, simply input port to the CPU.

Specifications

The module has 6 standard 2.54mm pitch pins
Pin Description

VCC : 5V
GND : 0V
DIN : Connects to MOSI
CS : Slave select
CLK : Clock - SCK

8x8 Red LED Matrix
Module Operating voltage: 5V
Module size: 5 x 3.2 x 1.5cm (L x W x H)
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
Module with input and output interfaces, supports multiple modules cascade

Additional Information

Device	Display Module
Type	8X8 \| LED Dot \| Matrix
