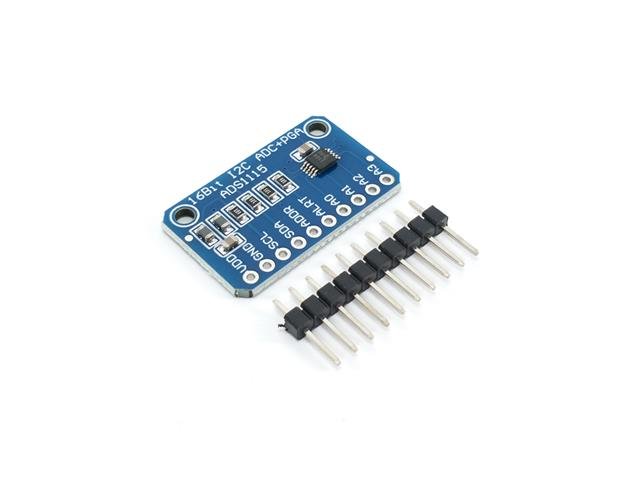

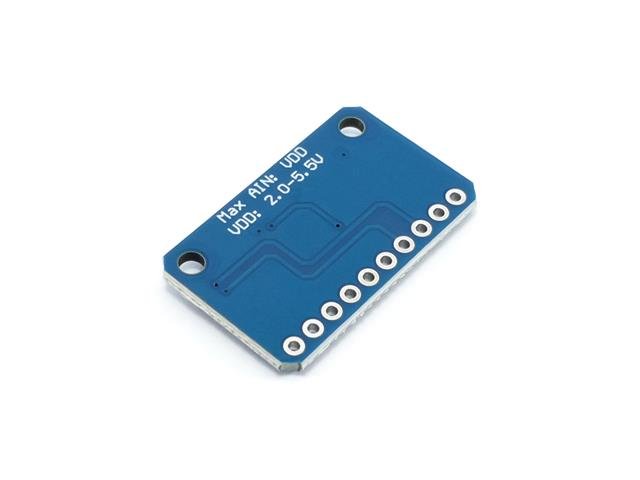

HKD 16 BIT A/D (ADC) DEV BOARD
New ADS1115 16 Bit A/D Module with Internal PGA- I2C. 2-5.5V VCC

SKU: HKD 16 BIT A/D (ADC) DEV BOARD

BRAND: Communica


Sold Out

Or split into 4x interest-free
payments of R15 Learn more

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: A/D Module, Iot

ADS1115 16 Bit A/D Module

  • Single-Shot Mode: Auto Shut-Down feature an onboard reference and oscillator.
  • Programmable Data Rate: transferred via an I2C-compatible serial interface; four 8SPS to 860SPS I2C slave addresses can be selected.
  • Internal Low-drift ADS1113/4/5 operate from a single power supply Voltage Reference ranging from 2.0V to 5.5V.
  • Internal Oscillator The ADS1113/4/5 can perform conversions at rates Internal PGA up to 860 samples per second (SPS).
  • An onboard PGA is available on the ADS1114 and ADS1115 that I2C Interface: Pin-Selectable Addresses offers input ranges from the supply to as low as Four Single-ended or Two ±256mV, allowing both large and small signals to be Differential Inputs (ADS1115) measured with high resolution.
  • The ADS1115 also features an input multiplexer (MUX) that provides two Programmable Comparator differential or four single-ended inputs.(ADS1114 and ADS1115)
  • The ADS1113/4/5 operate either in continuous Applications conversion mode or a single-shot mode.
  • Portable Instrumentation automatically powers down after a conversion and greatly reduces current consumption during idle
  • Consumer Goods periods. The ADS1113/4/5 are specified from –40°C
  • Battery Monitoring to +125°C.

    • Package Include:

  • 1 x 6 Bit I2C ADS1115 Module with pin
  • ADC Bit rate: 16 Bit
  • Interface Type: I2C
  • Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
  • Input voltage: 2.0-5.5v
  • Channel input voltage :0-VDD
  • Continuous Mode: Only 150μA
  • Single-Shot Mode: Auto Shut-Down
  • PROGRAMMABLE DATA RATE:8sps-860sps
  • Input range programmed control, 7 types input ranges:
    • -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,
    • -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
  • I2C 7-bit addresses between 0x48-0x4B
  • Size: 18mm*28mm

    • Applications:

  • Portable instrumentation
  • Consumer goods
  • Battery monitoring
  • Temperature measurement
  • Factory automation and process controls
Device Module
Type ADS1115 | 16 Bit A/D
