GS-6311-48T6X - Network Hubs & Switches - 4711605287289

GS-6311-48T6X

Name: GS-6311-48T6X - Communica [Part No: GS-6311-48T6X]
Brand: Planet
SKU: GS-6311-48T6X
Price: 10560 ZAR
Availability: InStock

SKU: GS-6311-48T6X

BRAND: Planet

R 12,144.00_{(inc VAT)}
R 10,560.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Security, Access Control & Surveillance

Type: Network Hubs & Switches

Category: Layer 3 Managed Gigabit Switch

Planet 48 Port 10/100/1000BASE-T, 6x10GBASE-SR/LR SFP+, Console Port:1xRJ45~RS232 Serial Port (9600, 8, N, 1), CPU:MIPS 800MHz, RAM:512Mbytes, Managed Switch, AC100~240V 50/60Hz, 440x260x44 mm

Layer 3 Managed Gigabit Switch

Overview

Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking

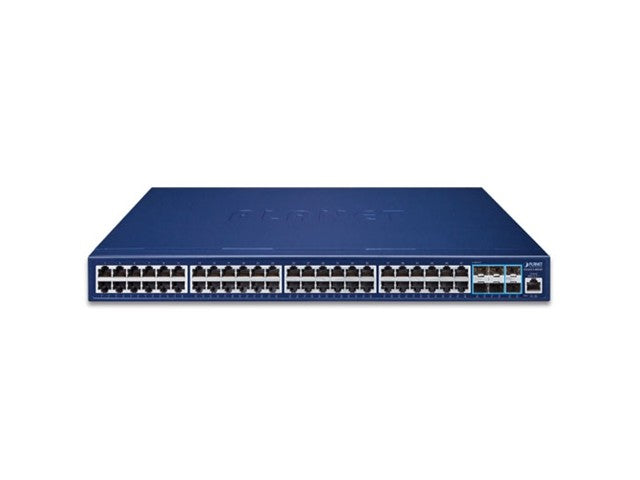

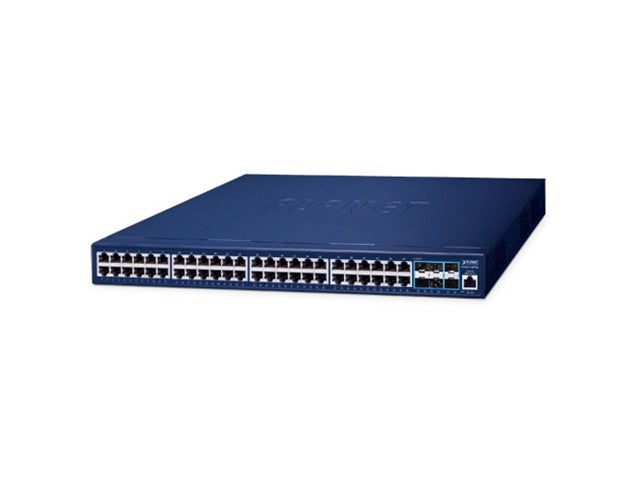

PLANET GS-6311-48T6X is a brand-new Layer 3 Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The GS-6311-48T6X features 48 10/100/1000BASE-T RJ45 copper ports and 6 1G/10GBASE-X SFP+ ports with 216Gbps switch fabric delivered in a 1U rugged case.

The GS-6311-48T6X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces and 216Gbps switching fabric, the GS-6311-48T6X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the GS-6311-48T6X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.

Features

Physical Ports

48 10/100/1000BASE-T RJ45 copper ports (Ports 1 to 48)
6 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP (Ports 49 to 54)
RJ45 to DB9 console interface for switch basic management and setup

IP Routing Features

IP routing protocol supports RIPv1/v2, OSPFv2
Routing interface provides per VLAN routing mode
Supports route redistribution

Layer 2 Features

Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back pressure flow control in half-duplex mode
High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
32K MAC address table, automatic source address learning and aging
Supports VLAN
- IEEE 802.1Q tag-based VLAN
- GVRP for dynamic VLAN management
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- Private VLAN Edge (PVE) supported
- GVRP protocol for Management VLAN
- Protocol-based VLAN
- MAC-based VLAN
- IP subnet VLAN
Supports Link Aggregation
- Maximum 64 trunk groups, up to 8 ports per trunk group
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (static trunk)
Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- Supports BPDU & root guard
Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
Provides port mirror (many-to-1)
Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of Service

8 priority queues on all switch ports
Support for strict priority and WRR (Weighted Round Robin) CoS policies
Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
Strict priority and WRR CoS policies

Multicast

Supports IPv4 IGMP snooping v1, v2 and v3
Supports IPv6 MLD v1 and v2 snooping
Querier mode support
Supports Multicast VLAN Register (MVR)

Security

IEEE 802.1x port-based network access authentication
MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
TACACS+ login users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Supports DHCP snooping
Supports ARP inspection
IP Source Guard prevents IP spoofing attacks
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

Management

Management IP for IPv4 and IPv6
- Switch Management Interface
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSHv2/TLSv1.2 secure access
BOOTP and DHCP for IP address assignment
Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
SNTP (Simple Network Time Protocol) for IPv4 and IPv6
User privilege levels control
Syslog server for IPv4 and IPv6
Supports DDM
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
Supports sFlow
Supports ULDP
Supports ULPP (Uplink Protection Protocol)
Supports ULSM (Uplink State Monitor protocol)
Supports LLDP/LLDP MED
Supports DHCP Option82/43/60/61/67
Supports ping, trace route function for IPv4 and IPv6
PLANET Smart Discovery Utility for deployment management

Specifications

Hardware Specifications
Copper Ports	48 10/100/1000BASE-T RJ45 copper ports (ports 1 to 48)
10G SFP+ Ports	6 10GBASE-SR/LR SFP+ interfaces (ports 49 to 54) Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console Port	1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
CPU	MIPS 800MHz
RAM	512Mbytes
Flash Memory	32Mbytes
ESD Protection	Contact ±6KV , Air ±8KV
Surge Protection	Differential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)	440 x 260 x 44 mm
Weight	3676g
Power Consumption	53.7 watts/183BTU
Power Requirements- AC	AC 100~240V, 50/60Hz
Fan	1
LED	System: 　PWR (Green), SYS (Green) Ports: 　LNK/ACT (Green)
Switching Specifications
Switch Architecture	Store-and-forward
Switch Fabric	216Gbps/non-blocking
Switch Throughput	160.7Mpps
Address Table	32K MAC address table with auto learning function
ARP Table	8K
Routing Table	12K
IP Interface	1024
ACL Table	4K
Shared Data Buffer	16MB
Jumbo Frame	12KBytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions
IP Routing Protocol	Static route RIPv1/v2 OSPFv2
Layer 3 Protocol	ARP ARP Proxy IGMP Proxy
IPv6 Layer 3 Functions
Other	ICMPv6,ND,DNSv6
Layer 2 Functions
Port Configuration	Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect
Port Status	Display each port’s speed duplex mode, link status, flow control status and auto negotiation status
VLAN	802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN
Bandwidth Control	TX/RX/Both
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group
QoS	8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: 　IEEE 802.1p CoS/ToS 　IPv4/IPv6 DSCP 　Port-based WRR
Multicast	IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024
Security Functions
Access Control List	Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 2K entries
Security	Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels
AAA	TACACS+ and IPv4/IPv6 over RADIUS
Authentication	IEEE 802.1x port-based network access control
Switch Management Functions
System Configuration	Console, Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
Management	IPv4 and IPv6 dual stack management User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups IPv4/IPv6 FTP/TFTP IPv4/IPv6 NTP RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 TACACS+ PLANET Smart Discovery Utility
SNMP MIBs	RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing)

Downloads

Datasheet - GS-6311-48T6X
