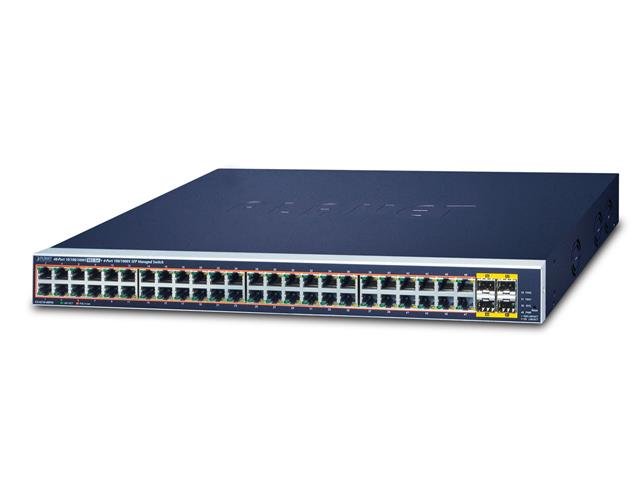

PLANET GS-4210-48P4S is a cost-optimized, high-density PoE+ Managed Gigabit
Ethernet Switch featuring PLANET intelligent PoE functions to improve the availability
of critical business applications. It provides IPv6/IPv4 dual stack management and built-
in L2/L4 Gigabit switching engine along with 48 10/100/1000BASE-T ports featuring
36-watt 802.3at PoE+ and 4 additional Gigabit SFP slots. With a total power budget
of up to 400 watts for different kinds of PoE applications, it provides a quick, safe
and cost-effective Power over Ethernet network solution for small businesses and
enterprises.
Physical Port
- 48 10/100/1000BASE-T Gigabit RJ45 copper ports with 48-port IEEE 802.3at/af PoE injector
- 4 100/1000BASE-X mini-GBIC/SFP slots
- Reset button for system factory default and reboot
Switching
- Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto- negotiation, and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 48 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters in standard mode and 250m in extend mode
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive-check
- PoE schedule
| Device |
Switch |
| Type |
48 Port | 10/100/1000T | Managed |
