Updated Fast Charging Protocol Detector with Bluetooth. It Specializes In Verifying the Fast Charging Capabilities of Different Chargers, Monitoring Real Time Charging Situations with Accurate Voltage, Current and Power Data
USB Fast Charge Tester
Overview

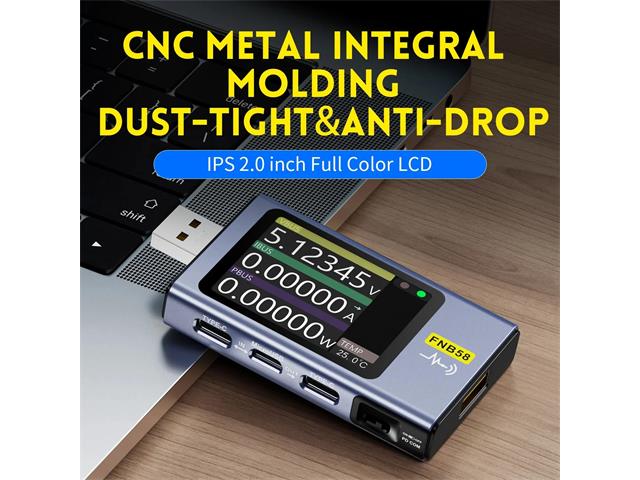

The FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Features
- Voltage: 4~28V
- Current: 0~7A
- Power: 0~140W
- Resistance: 0~9999.9ohm
- Internal Resolution: 0.0001 Low-Resolution real-time detection of changes
- D+/D- Data Line Voltage: 0~3.3V
- Capacitance: 0-9999,99 Ah
- Energy: 0~9999,99 Wh
- Interfaces: USB-C in, USB-C out, MicroUSB HID, USB-A
- Record Time: 99 days 23:59:59s
- Display: colour 2.0 inch LCD High Definition, 6 Digits display
- Dimensions: 82 x 42 x 13mm
Downloads
Additional Information
| Device |
Charge Tester |
| Type |
USB Fast |
