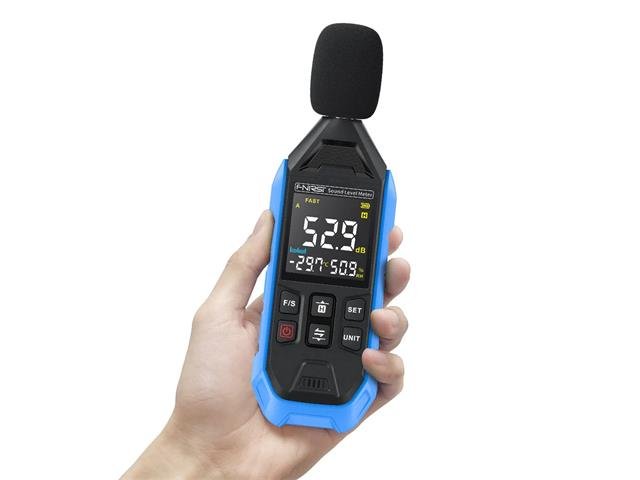

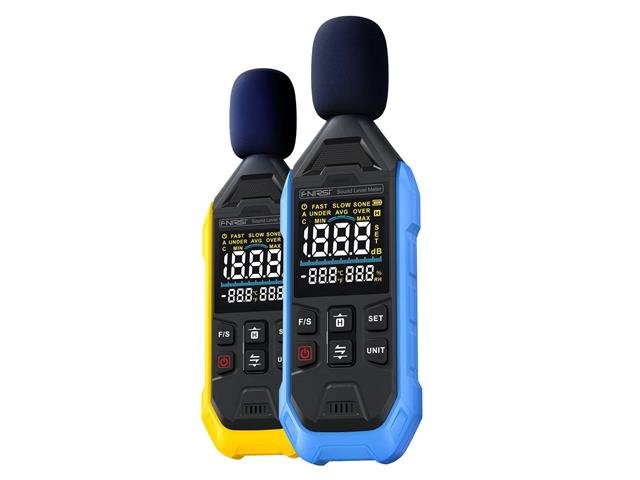

FNIRSI FDM-01 SOUND LEVEL METER

SKU: FNIRSI FDM-01 SOUND LEVEL METER

BRAND: Fnirsi


Sound Level Meter 30-130DB. Frequency 31.5Hz-8.5KHz.4 Digits Display with Resolution 0.1DB, Sampling Rate 2 Times /Second. Standard IEC651TYPE2 & ANSIS1.4TYPE2. Battery 3.7V/600mAh

High-precision Digital Noise Decibel Meter

Overview

The FNIRSI FDM01 Decibel Meter has been designed to check noise compliance with safety regulations.  It is used to perform acoustic analysis by safety engineers, health, industrial and safety officers as well as sound quality control in environments like factories, and offices, where traffic noise needs to be monitored and for any other noise monitoring applications.

The FDM01 Sound Level Meter features Fast and Slow measurement switching. Fast measurement is more sensitive and picks up on fast-changing noise levels. Slow measurement is more stable and able to pick up on lower frequencies.

Features

  • Free sensitivity
  • Temperature and humidity detection
  • Light alarm
  • Mobile app intelligent linkage
  • Conforms to International Committee IEC651TYPE2 and American International Standard ANSIS1.4TYPE2 standards
  • Measurement range: 30dB-130dB
  • Accuracy: ±1.5dB
  • A-weighting responses, with fast and slow response rate selection
  • "Automatic shutdown in 15 minutes" function
  • Dual mode switching with adjustable sensitivity
  • Diligently designed with attention to detail

Specifications

  • Measuring Range: 30 ~ 130dB
  • Dynamic Range: 3.50dB
  • Accuracy: +-1.5dB
  • Frequency range: 31.5Hz ~ 8.5kHz
  • Sampling Frequency: 2 times/sec
  • Resolution: 0.1dB
  • Max/MIN/Average Mode
  • Data Hold
  • Temperature and Humidity measurements
  • Backlight display
  • Auto power-off in 15 minutes
  • Microphone: 6mm high-sensitivity condenser microphone
  • Digital Display: 2.3inch Colour LCD
  • Compliance: CE, IEC651TYPE2, ANSIS1.4-TYPE2 standards
  • Power source: built-in 600mAh/3.7V Lithium-Ion Battery
  • USB-C Charging interface
  • Dimensions: 190 x 61 x 31mm

Additional Information

Device Meter
Type High-precision | Digital | Noise Decibel
