FNIRSI DSO153 ONE CH 1MHZ
DSO-153 is a -IN-1 Handheld Digital Oscilloscope+ Waveform Generator. It has a Single Channel Oscilloscope with a 1MHZ Bandwidth and 5MSA/S Sampling Rate and a 10KHz Sine Wave Generator (Does Not Include FNIRSI P6100 X1 X10 SCOPE PROBE)

SKU: FNIRSI DSO153 ONE CH 1MHZ

BRAND: Fnirsi


Or split into 4x interest-free
payments of R192.39 Learn more

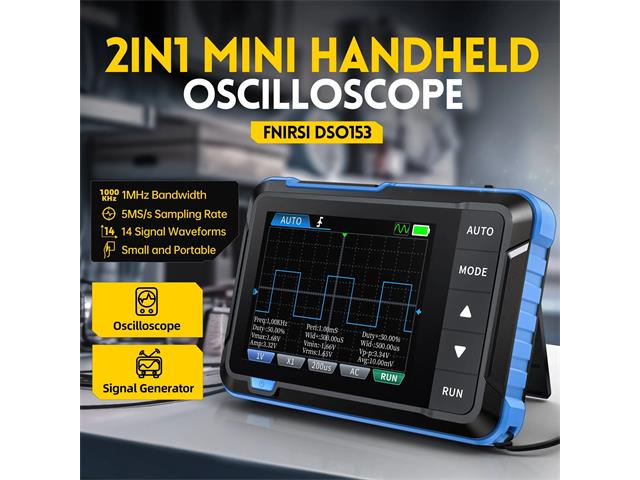

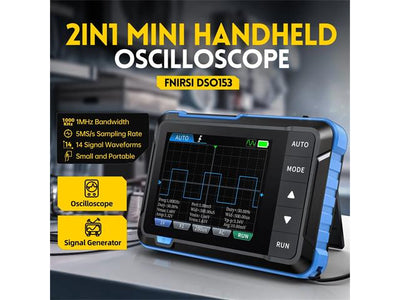

3-IN-1 Handheld Digital Oscilloscope

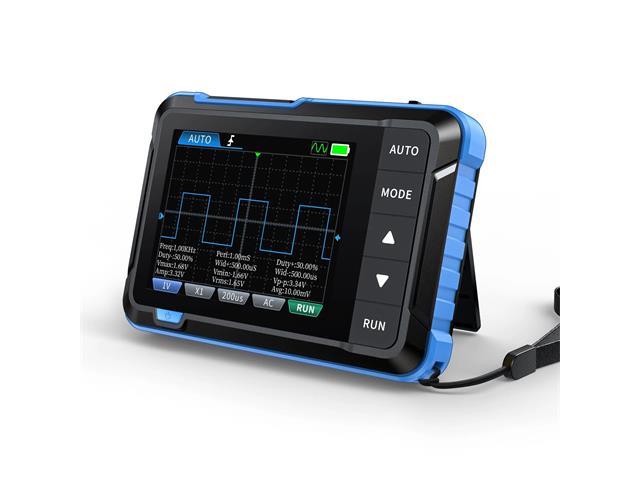

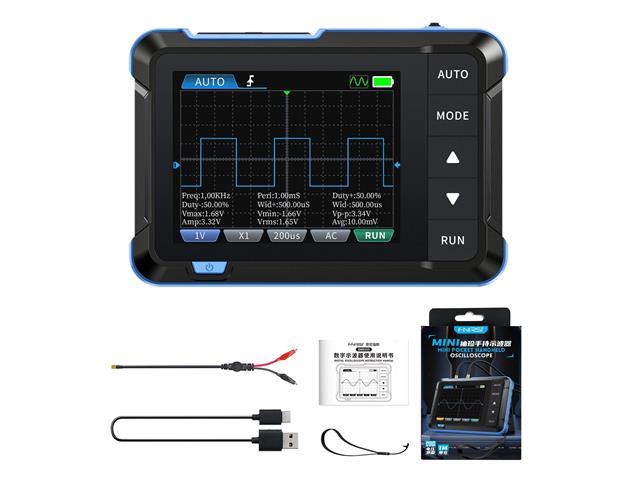

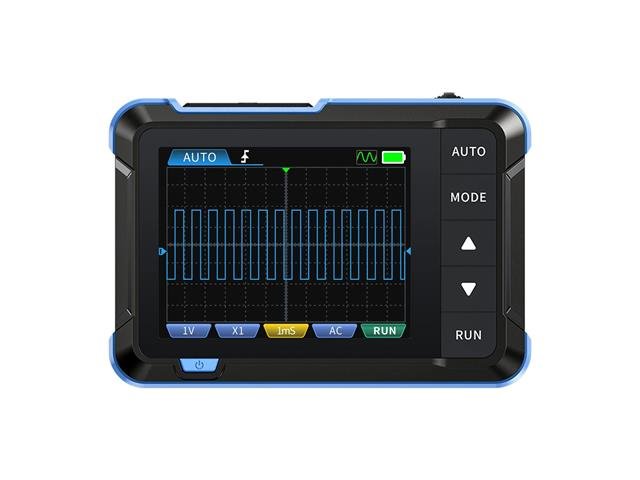

The FNIRSI DSO153 Mini-Oscilloscope & Signal Generator is an upgrade to the DSO152 Mini-Handheld Oscilloscope. It offers a larger 1MHz analogue bandwidth, a faster sampling speed at 5MS/s, and also includes a signal generator with 14 waveforms. The oscilloscope offers a standard square wave calibration with a frequency of 1kHz. It can measure a voltage range of up to 800Vpp with an X10 probe. Due to the one-key AUTO function, it can display the measured waveforms without complicated adjustments. The oscilloscope can be connected through MCX for signal input or via BNC using the included adapter. The 1000mAh lithium battery has a 4-hour battery life and an Auto shutdown when not in use. Ideal for learners and students just starting in Electronics and for schools to put an oscilloscope on each learner’s workstation. This is a low-cost mini oscilloscope and signal generator that offers portability at a low price.
  • 2.8-inch HD LCD display with 320*240 Resolution

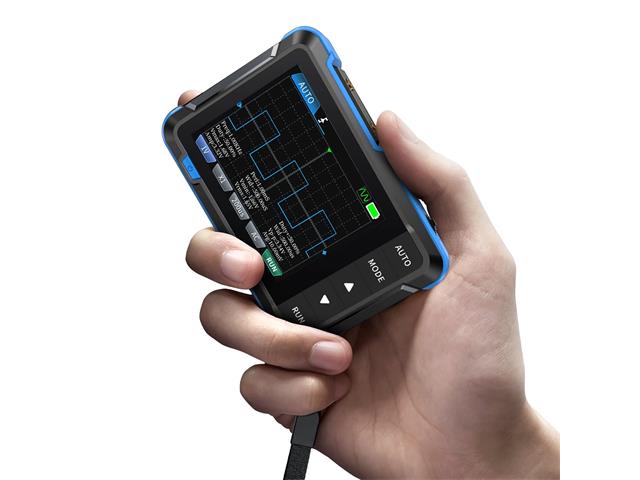

  • Portable Pocket Oscilloscope with Signal Generator
  • Lightweight, mini-sized, assembled.
  • Faster sampling: 5MS/s, 1MHz bandwidth.
  • Versatile triggering: single, normal, auto.
  • User-friendly: One-button setup.
  • Extended battery: 1000mAh, 4 hours.
  • Multi-functionality: 10KHz Sine Wave Generator.
  • Analog Bandwidth: 0~1MHz
  • 1 Channel
  • Sampling Speed: 5MS/s
  • Vertical Scale: 10mV/div ~ 20V/div
  • Timebase Range: 500ns ~ 20S
  • Voltage Range: X1: 80Vpp; X10: 800Vpp
  • Trigger Modes: Auto, Normal, Single
  • Frequency: 1K Duty Cycle: 50%
  • Signal Generator: 0~10KHz
  • Duty Cycle: 0~100% (regular & sawtooth waves)
  • Signal Generator Waveforms: sine, rectangular, sawtooth, half, full, positive step, anti-step, noise, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave
  • Display: 2.8inch LCD (320×240 pixels)
  • Lithium Battery Capacity: 1000mAh
  • Dimensions: 99 x 68 x 19.5mm
  • Weight: 100g
  • Certification: CE
Device Oscilloscope
Type 3-IN-1 | Handheld | Digital
